FILLER POINT: TWIN FILLER – STANDARD LOCATION

FUEL SUPPLY METHOD: TRANSFER PUMP TO MAIN FUEL TANK

TANK LOCATION: BEHIND REAR AXLE

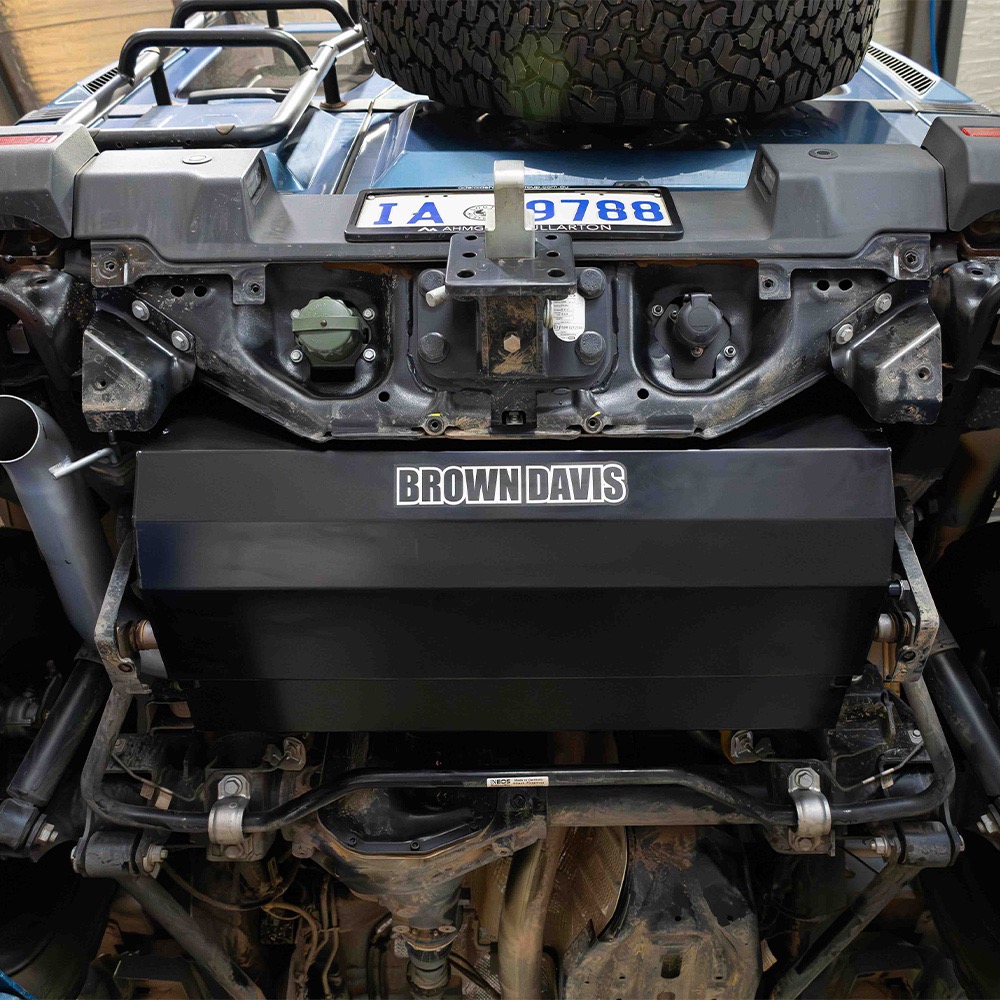

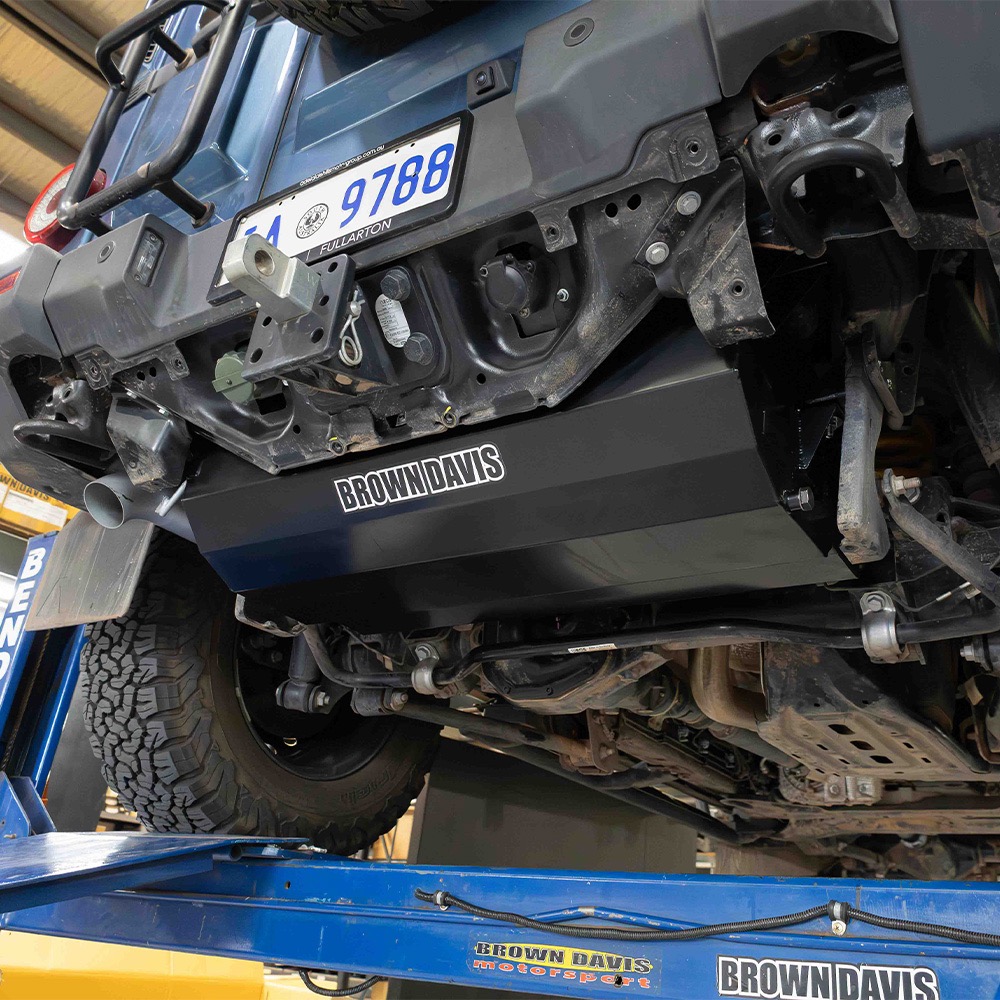

MODIFICATIONS: NEW EXHAUST SYSTEM SUPPLIED WITH KIThe Brown Davis 27.5 Gallon Auxiliary Long Range Fuel Tank for the INEOS Grenadier (Petrol models) is the ultimate upgrade for over-landing builds. With a standard main tank of 23.8 gallons, the addition of a Brown Davis auxiliary fuel more than doubles your total fuel supply to an impressive 51.3 gallons, transforming the Grenadiers over-landing ability and allowing you to travel further between fuel stops, making it ideal for long-distance road trips, towing, or exploring remote regions where fuel availability is scarce. This system utilises a transfer fuel pump to deliver fuel from the Brown Davis Auxiliary tank to the vehicle’s main tank, which is activated via a dash mounted fuel gauge pump button. Seamlessly integrated into the vehicle without compromising ground clearance or off-road capability, this auxiliary tank gives your INEOS Grenadier the range it deserves while retaining the rugged reliability it has been designed for. With Brown Davis, you can finally match your Grenadier’s capability with the fuel endurance needed to go anywhere

FUEL TRANSFER SYSTEM

This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can course pump failure. All parts and hardware for install are supplied

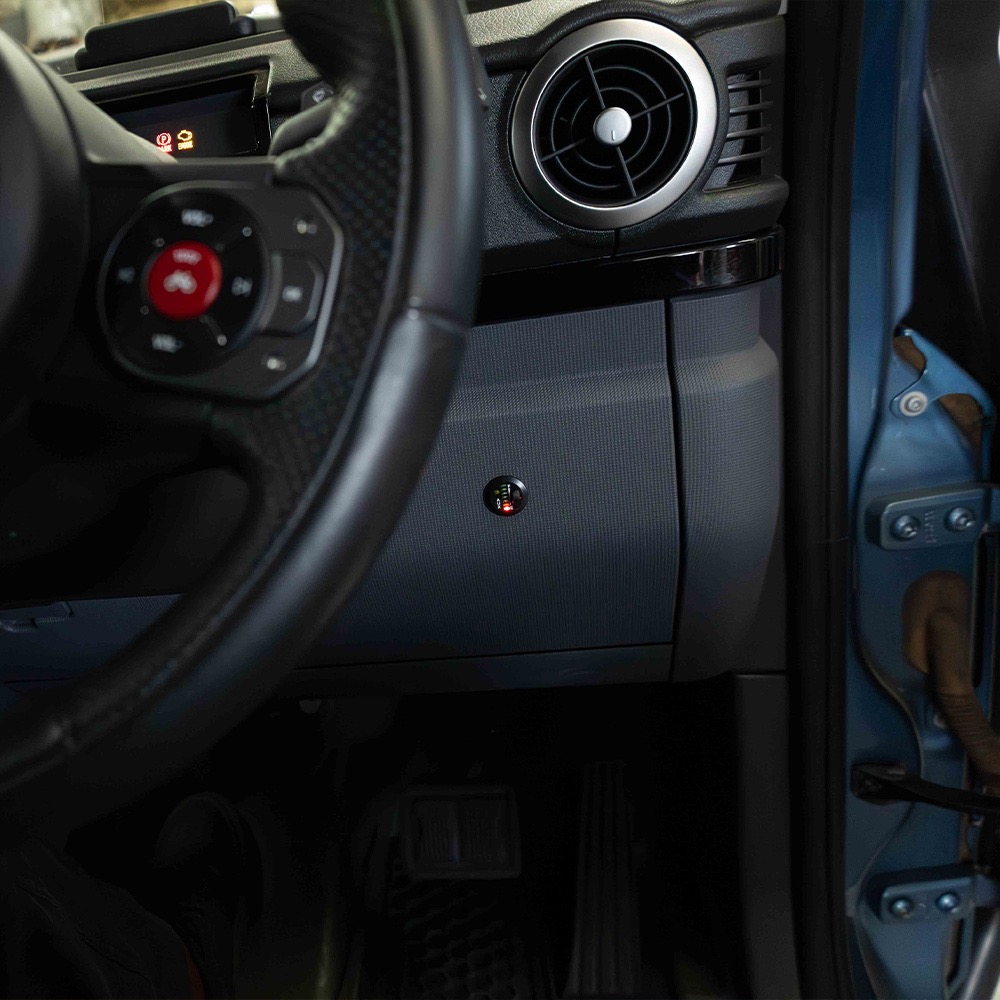

Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.
