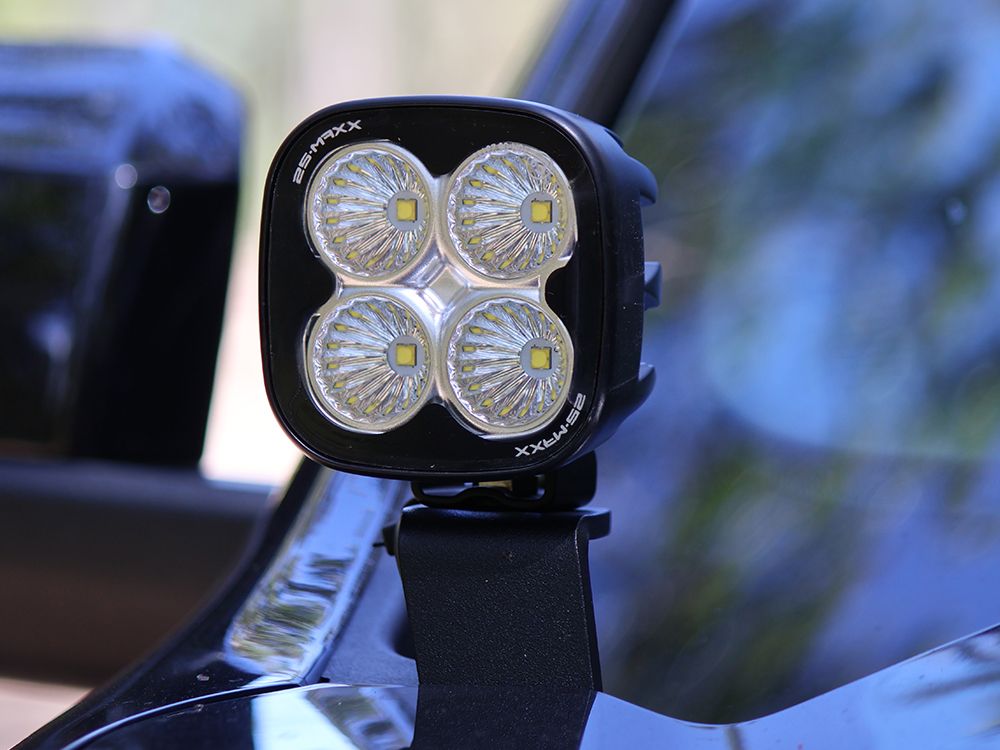

Utility 25 Maxx

The latest in the Triple-R Lights’ range of LED work lights, the Utility-25 MAXX is a hugely versatile, medium-duty work light. The lamp incorporates higher output 11W LEDs to deliver seriously impressive lighting performance, especially considering the lamps’ comparatively small proportions, something made possible through continued improvements in LED electronics design, coupled with the lamps’ robust physical design. The lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types. Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 MAXX utilises highly efficient 11W LEDs from a world-leader in LED design and manufacture. Like all Triple-R Lights products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 4,560 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves. Designed and manufactured in the UK, the Utility-25 MAXX is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with EU regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 4†) standards. Supplied with male/female Deutsch connectors (part no. DT04-2S/DT04-2P), the Utility-25 MAXX also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations. PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY. * - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies. † - CISPR-25 (Class 4) applies to 12V usage only unless specified. NOT FOR HIGHWAY USE ECE (Reg 10) approved Work Light 5 Year warranty* Made in Britain CAE optimised 'Matrix' cooling system Advanced optical design delivers superior lighting performance Electronic thermal management Certified IP67/IP69K watertight Automotive grade corrosion resistance (ISO 9927 / BS EN 60068) 5,000 kelvin light temperature for maximum definition EMC protected - CISPR 25: 2008 (Class 4) certified Vibration Certified (BS EN 60068) : 10Hz - 2000Hz, 1 oct/min, 10gn Over voltage protected Reverse polarity protected Male and female 2-pin Deutsch connectors included

1x Utility-25 MAXX LED Work Light
Voltage Range (DC)	10-32V
LED Life	50,000 hours
Weight	0.8 lbs
HIGH BEAM FUNCTION
Total Luminous Flux	4,560 Lm
Effective Lumens †	3,995 Lm
Colour Temperature	5000K
Power Consumption	45 Watts
Peak Current Draw	8.9 Amps
Current Draw (14.4V)	3.1 Amps
Connector	2-Pin Deutsch DT (+28cm Cable)
DIMENSIONS
Width	3.1''
Depth	2.2''
Height	3.1''
CERTIFICATION
IP Rating #	IP68
EMC Standard	J551-4 / J1113-41
EMC Protection	CISPR-25 (Class 4)
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
OPERATING CONDITIONS
Operating Temperature	-40oC … +90oC
Vibration (BS EN 60068)	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	78° / 78°
1 Lux	71m
5 Lux	32m
20 Lux	16m
50 Lux *	10m

  † - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90^o left/right, and +/- 90^o up/down. * - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night. # - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

• 1x Utility-25 MAXX Work Lamp
• 1x Uility-25 Centre Mount (supplied attached to lamp)
