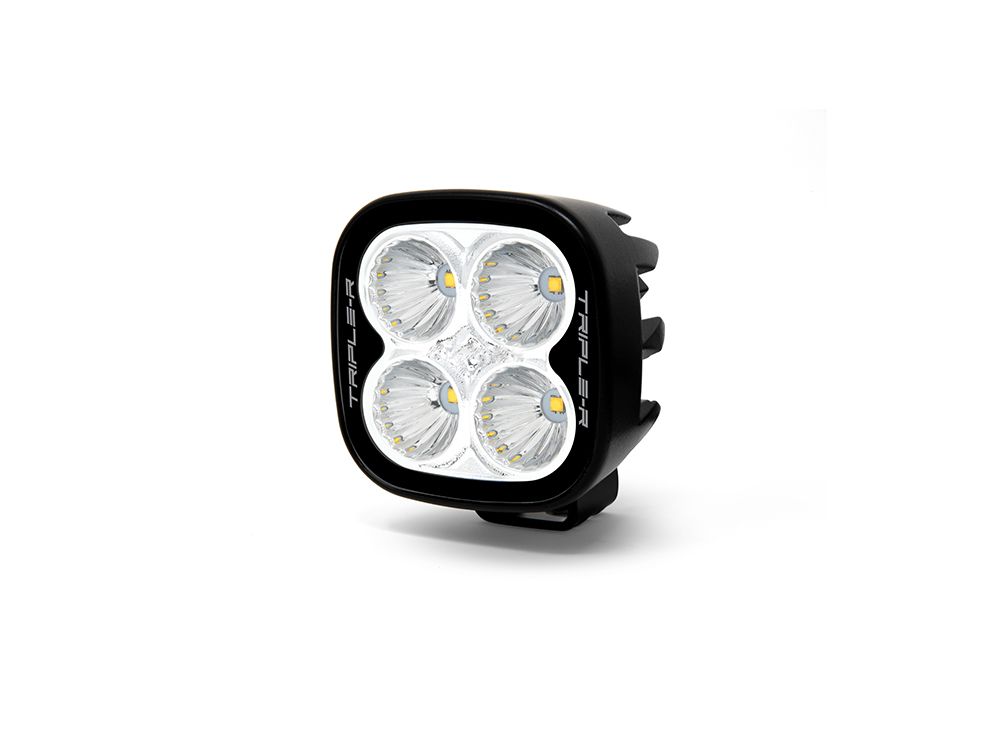

Utility 25

The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. The lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types. Measuring 3.15" x 3.15" and capable of operating between 10-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture. Like all Triple-R products, the color temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallized optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves. Designed and manufactured in the UK, the Utility-25 is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5†) standards. Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-25 also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations. PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY. * - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies. NOT FOR HIGHWAY USE UNECE approved Work Light (Reg 10) High density, premium ‘bin’ LEDs Advanced optical design delivers superior lighting performance CAE optimized 'Matrix' cooling system offers improved thermal dynamics Electronic thermal management system optimizes light output to preserve longevity of the LEDs Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection EMC protected - CISPR 25: 2008 (Class 5) Over voltage protected Reverse polarity protected ‘Unbreakable’ polycarbonate lens with hardcoat lacquer IP67 watertight 5-year warranty* Supplied with pre-wired male/female 2-pin Deutsch connectors Designed and manufactured in UK † - CISPR-25 (Class 5) applies to 12V usage only unless specified. * -5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

1x Utility-25 LED Work Light
Voltage Range (DC)	10-32V
LED Life	50,000 hours
Weight	0.8 lbs
HIGH BEAM FUNCTION
Total Luminous Flux	3,016 Lm
Effective Lumens †	2,642 Lm
Colour Temperature	5000K
Power Consumption	25 Watts
Current Draw (14.4V)	1.6 Amps
Connector	2-Pin Deutsch DT (+28cm Cable)
DIMENSIONS
Width	3.1''
Depth	2.2''
Height	3.1''
CERTIFICATION
IP Rating #	IP68
EMC Standard	J551-4 / J1113-41
EMC Protection	CISPR-25 (Class 5)
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
OPERATING CONDITIONS
Operating Temperature	-40oC … +90oC
Vibration (BS EN 60068)	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	78° / 78°
1 Lux	57m
5 Lux	25m
20 Lux	13m
50 Lux *	8m



• x1 Utility-25 LED Work Lamp
• x1 Mounting Bracket

Twin Lamp Kit includes:

• x2 Utility-25 LED Work Lamp (with mounting bracket)
• x1 Two-Lamp Wiring Kit
• x1 Rocker Switch
