Ineos Grenadier Grille Mount Kit

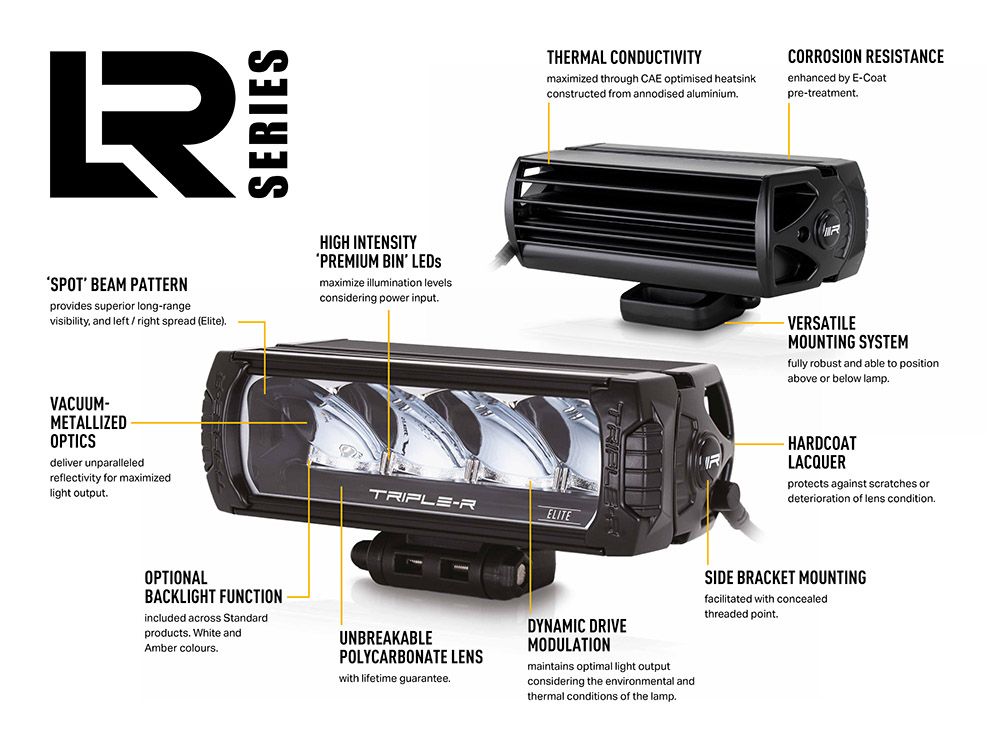

For an OE quality, auxiliary spotlight installation, the Triple-R Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Triple-R Lights’ High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft. The Ineos Grenadier Grille Integration Kit, includes a pair of LR-750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time. The Ineos Grenadier Grille Integration Kit is carefully engineered and optimised for use with LR-750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products. Please note: Lens covers are not compatible with lights installed using the INEOS Grille Kit. NOT FOR HIGHWAY USE Bespoke vehicle integration kit for Triple-R Lights LED light installation Custom fit for Ineos Grenadier Available with: LR-750 High Performance LED lights Kit also includes bespoke mounting brackets and two-lamp wiring kit Brackets made from high strength, UV -stable, composite material 5-year warranty Made in Britain

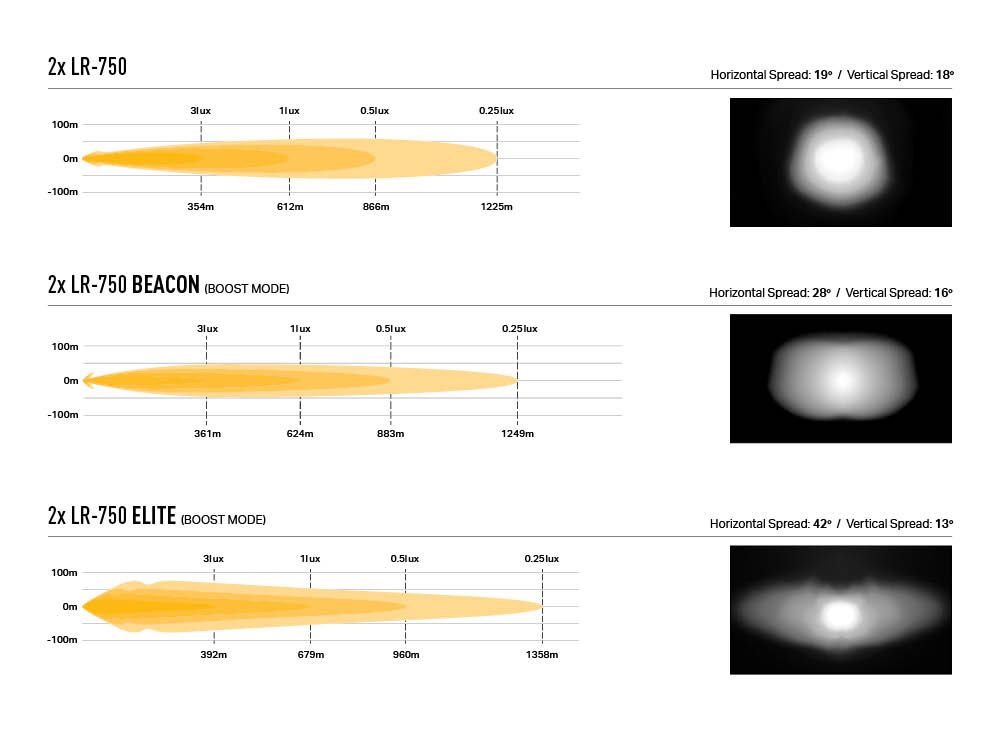

2x LR-750 2x LR-750 BEACON (BOOST MODE) 2x LR-750 ELITE (BOOST MODE) Voltage Range (DC) 10-32V 10-32V 10-32V LED Life 50,000 hours 50,000 hours 50,000 hours Weight 5.7 lbs 5.7 lbs 5.7 lbs HIGH BEAM FUNCTION Total Luminous Flux 9240 Lm 10800 Lm 10136 Lm Total Driver 'FOV' Flux † 5572 Lm 2484 Lm 6680 Lm Colour Temperature 5000K 5000K 5000K Power Consumption 88 Watts 104 Watts 104 Watts Current Draw (14.4V) 6.2 Amps 7.4 Amps 7.2 Amps Connector 3-Pin Superseal (+25cm Cable) 6-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) CERTIFICATION IP Rating # IP68 IP68 IP68 Salt Spray Test ISO 9227 ISO 9227 ISO 9227 Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 PHOTOMETRIC DATA Horizontal / Vertical Beam Angle 19° / 18° 28° / 16° 42° / 13° 0.25 Lux 1225m 1249m 1358m 0.5 Lux 866m 883m 960m 1 Lux 612m 624m 679m 3 Lux 354m 361m 392m   † - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here. # - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

2nd Box - GLK-US-L4-B

• 1x Grille Mounting Kit (includes cutting guides)
• 2x LR-750 LED Lamps

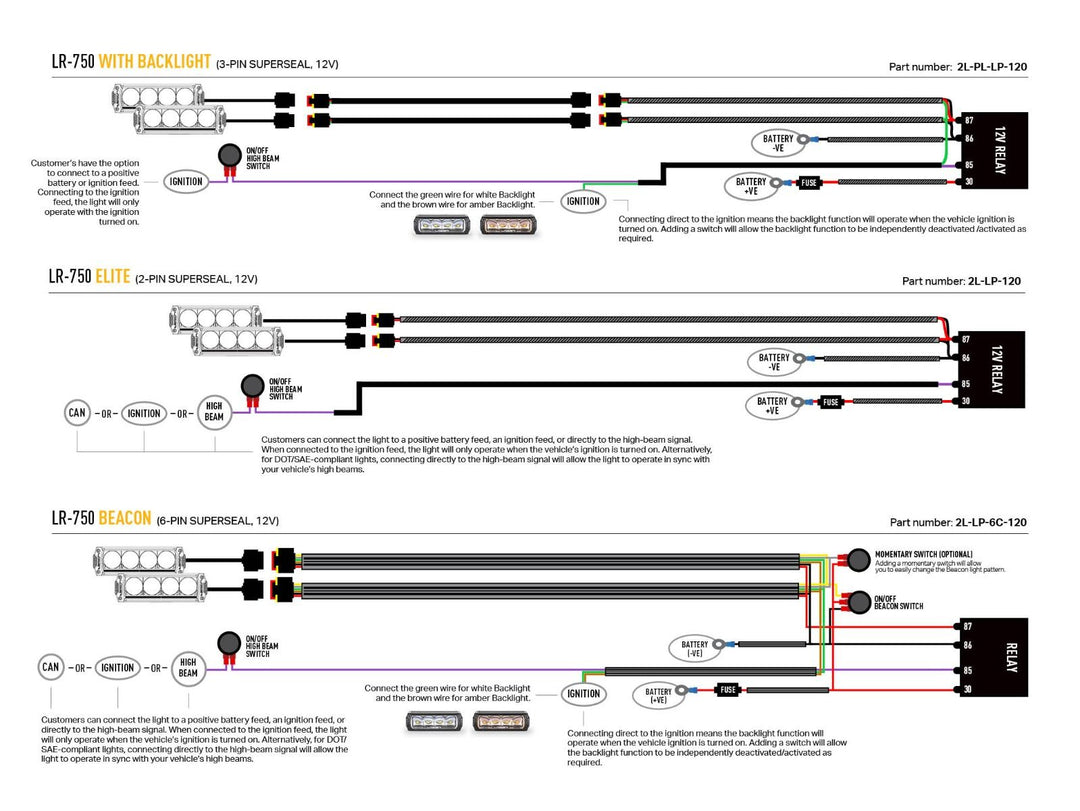

• 1x Two-Lamp Wiring Kit
• Installation Instructions
