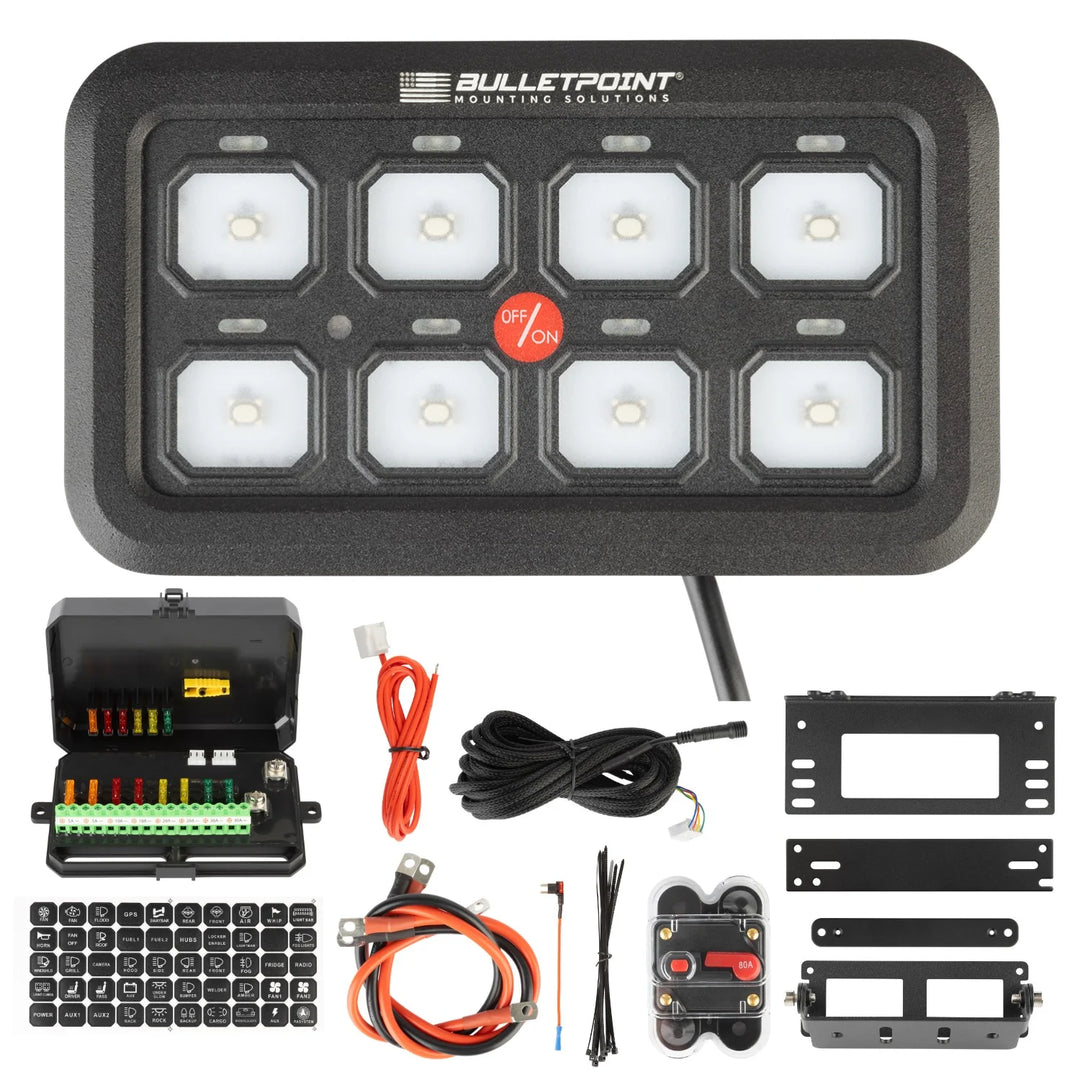

8 Gang Electronic Switch Panel - 8 Circuit Relay System for Accessories

✅ Universal Compatibility Say goodbye to a mess of cluttered wires and harnesses! Customize your command center and control up to 8 different lights or electronic accessories with the Bulletpoint 8 Circuit Switch Panel. This universal electronic 8 switch relay system is the ultimate upgrade for off-roaders, emergency response vehicles and work vehicles. This kit includes everything for a clean install and results in a central management system to control all of your accessories.

Switch Panel Features

With the tap of a finger, you can control up to 8 different accessories using the 8 circuit switch panel. The auto-dimming backlit screen makes it easy to see and operate at any hour, day or night. The buttons are pre-programmed to be continuous (i.e. turning on the accessory keeps it on until you push the button again to turn it off). However, it is possible to program any of the buttons to be momentary meaning that you need to push and hold the button to enable an accessory and releasing the button turns it off. The switch panel itself is IP65 water resistant so it can handle any harsh conditions you may encounter.

Control Box Features

The compact design of our control box gives you the flexibility to install it almost anywhere in your engine bay. The solid-state relays found in the control box are also IP65 water resistant. We include a built-in resettable fuse and the entire system features reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to your vehicle's fuse box without having to cut or splice into existing wiring. Each of the 8 circuits is fuse-protected and in the event that current draw exceeds the capacity of a specific circuit, a red status light will illuminate to indicate the error. Our control box features the following circuits ranging from 5A to 30A:

• (2x) 5A Circuits
• (2x) 10A Circuits
• (2x) 20A Circuits
• (2x) 30A Circuits

Compatible Switch Panel Holder

We include both a flush mount and an angled mounting bracket that is compatible with most RubiGrid® dash mounts. However, if you're looking to mount the included switch panel to your Bulletpoint mount via a mounting arm, we offer a compatible device holder (sold separately): Aluminum 8 Gang Switch Panel Device Holder.

Installation

Everything is included for a straightforward installation. Note: This is not a plug-and-play system and requires knowledge of vehicle electrical systems. Professional installation is strongly recommended.

Technical Specifications

• Input Voltage: 12V/24V DC
• Maximum Power: 600W at 12V/1200W at 24V
• Maximum Current: 60A
• Operating Temperature: -40°C-150°C (-40°F-300°F)
• Maximum Instantaneous Current: 100A
