Description

The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4×4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

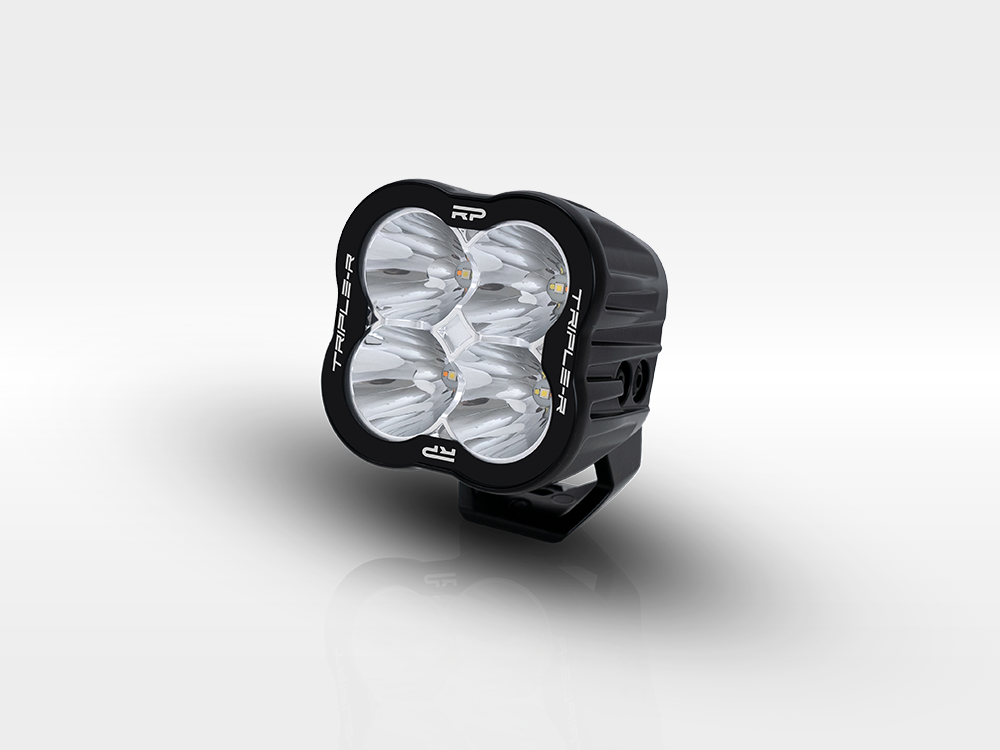

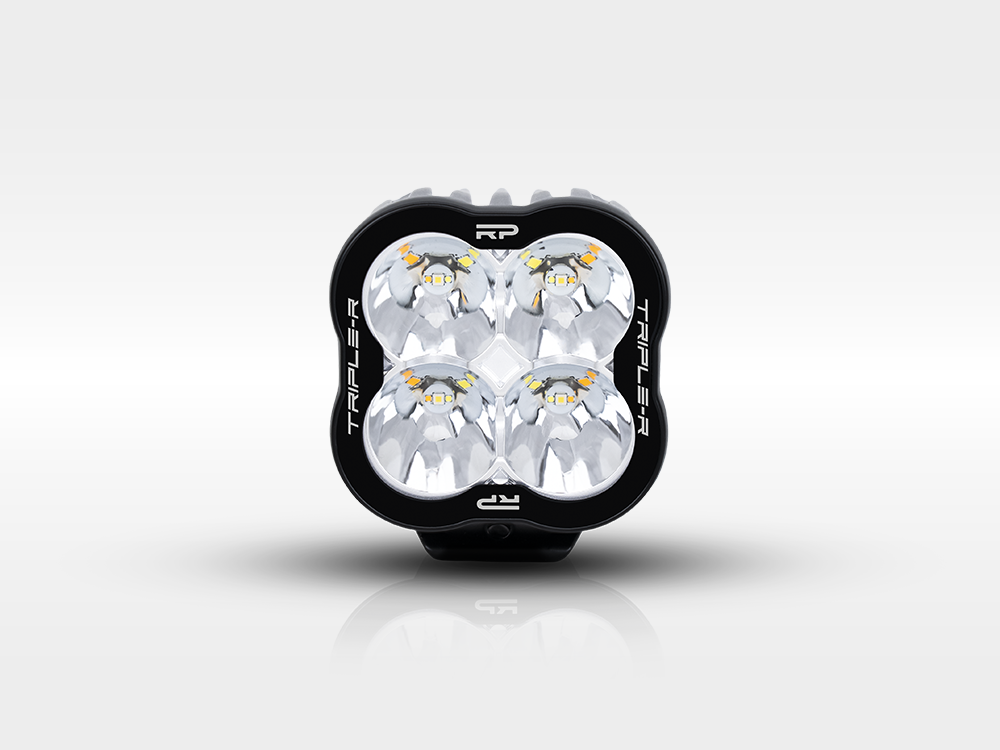

Boasting 4,620 lumen, delivering 1 lux to 433m, the Triple-R 750 LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, mean more light is directed to where you need it, across a perfectly homogenous beam pattern without flat spots. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.

The Triple-R 750 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 750 act as a high beam driving light only. The high beam function is approved to ECE Regulation 112, while the position light function (white only) is approved to ECE regulation 7, allowing for your Triple-R 750 to operate in parallel with your standard headlights (where UNECE regulations are recognised).

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

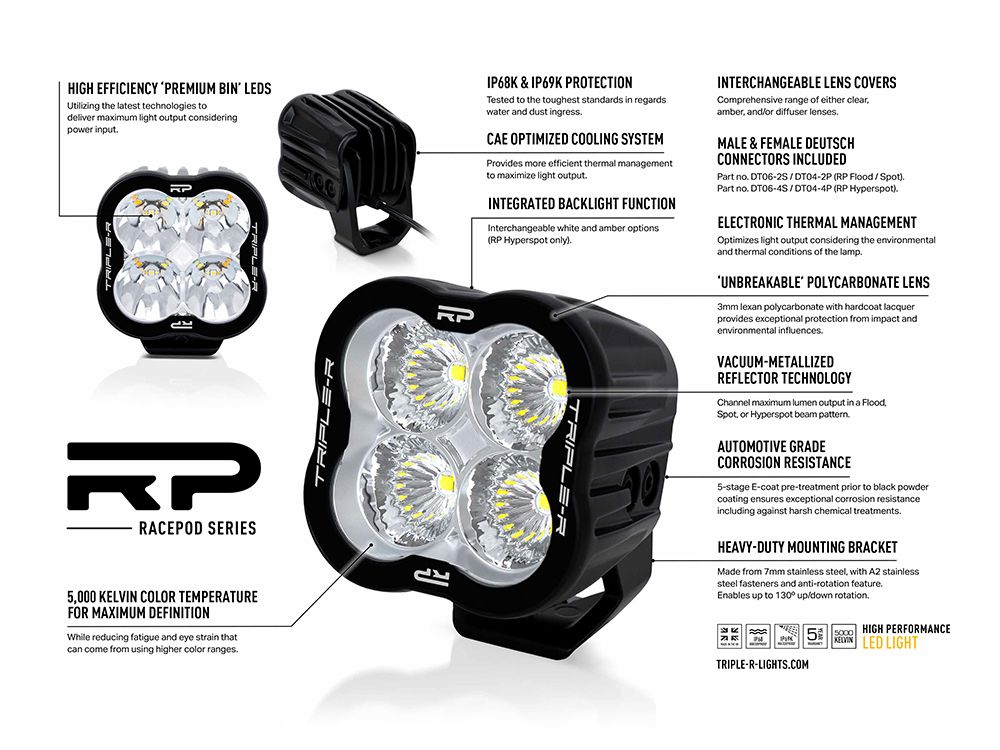

Utilizing 4 high-intensity LEDs

Vacuum-metallized ‘boost’ optics deliver Hyperspot beam pattern

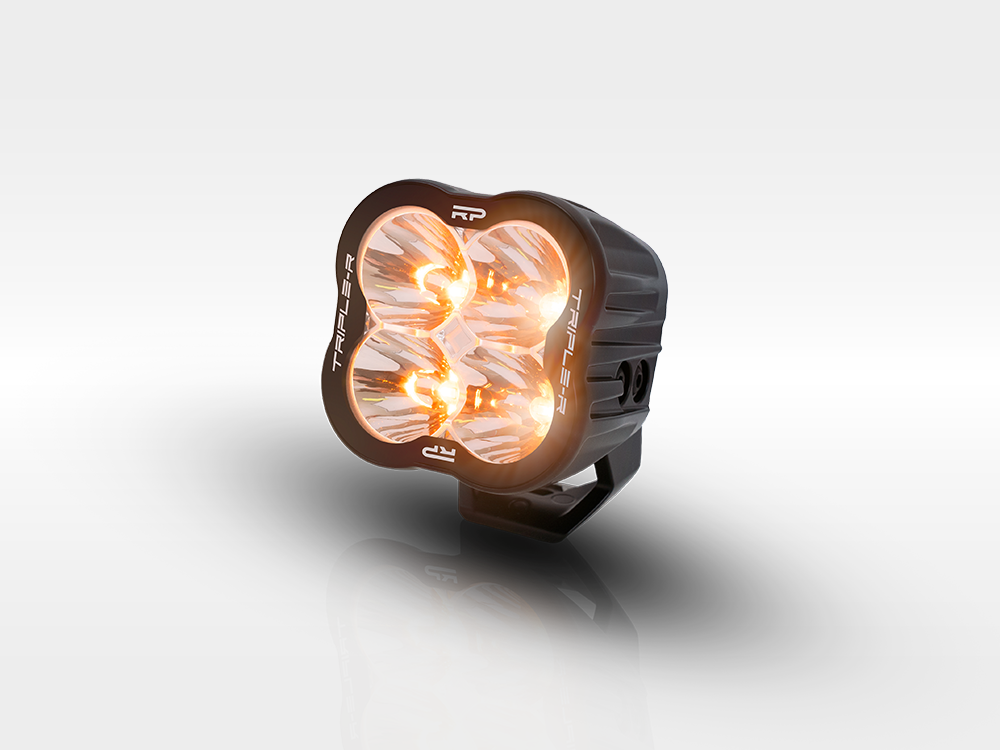

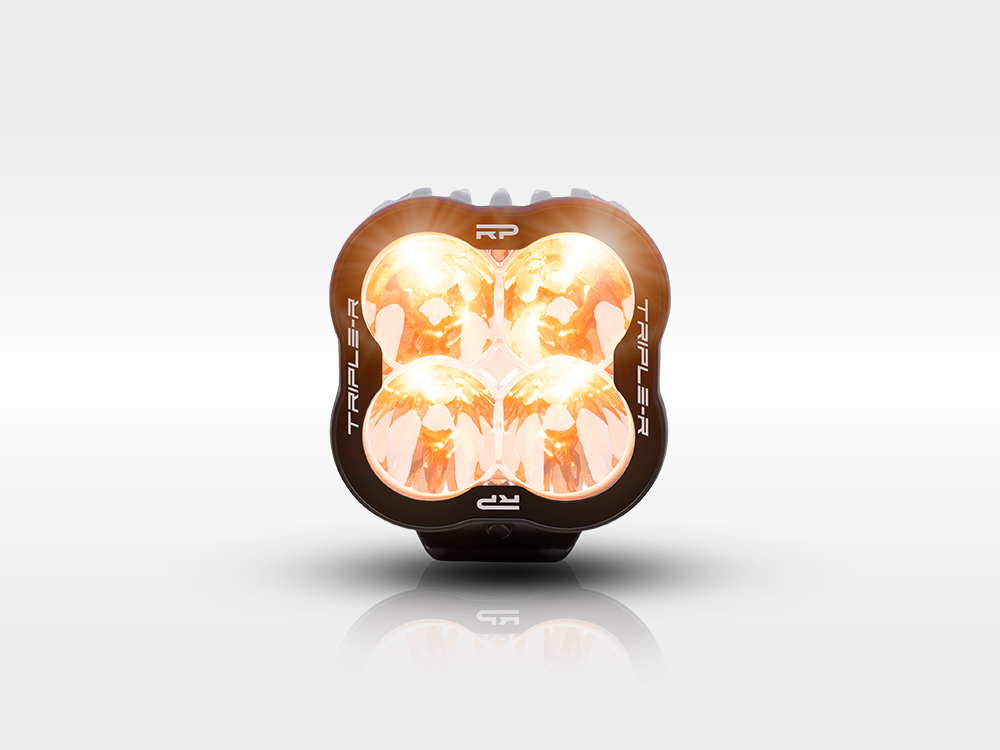

Integrated white/amber backlight function

CAE optimized cooling system with Electronic Thermal Management

5000k color temperature

Comprehensive range of lens covers available

Die-cast, heavy-duty mounting bracket

‘Unbreakable’ polycarbonate lens with hardcoat

Marine grade corrosion resistance

IP68 / IP69k approved

Over voltage protected

Reverse polarity protected

Includes male/female (4-pin) Deutsch connectors

5year warranty

Made in the UK

	RP Hyperspot
Voltage Range (DC)	10-32V
LED Life	50,000 hrs
Weight	2.4 Ibs
HIGH BEAM FUNCTION
Total Luminous Flux	4520 Lm
Total Driver ‘FOV’ Flux †	3268 Lm
Colour Temperature	5000k
Power Consumption	45 Watts
Current Draw (14.4V)	3.1 Amps
Connector	4-Pin Deutsch DT (+20cm Cable)
CERTIFICATION
IP Rating #	IP68
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here. # – All Triple-R Lights’ products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
