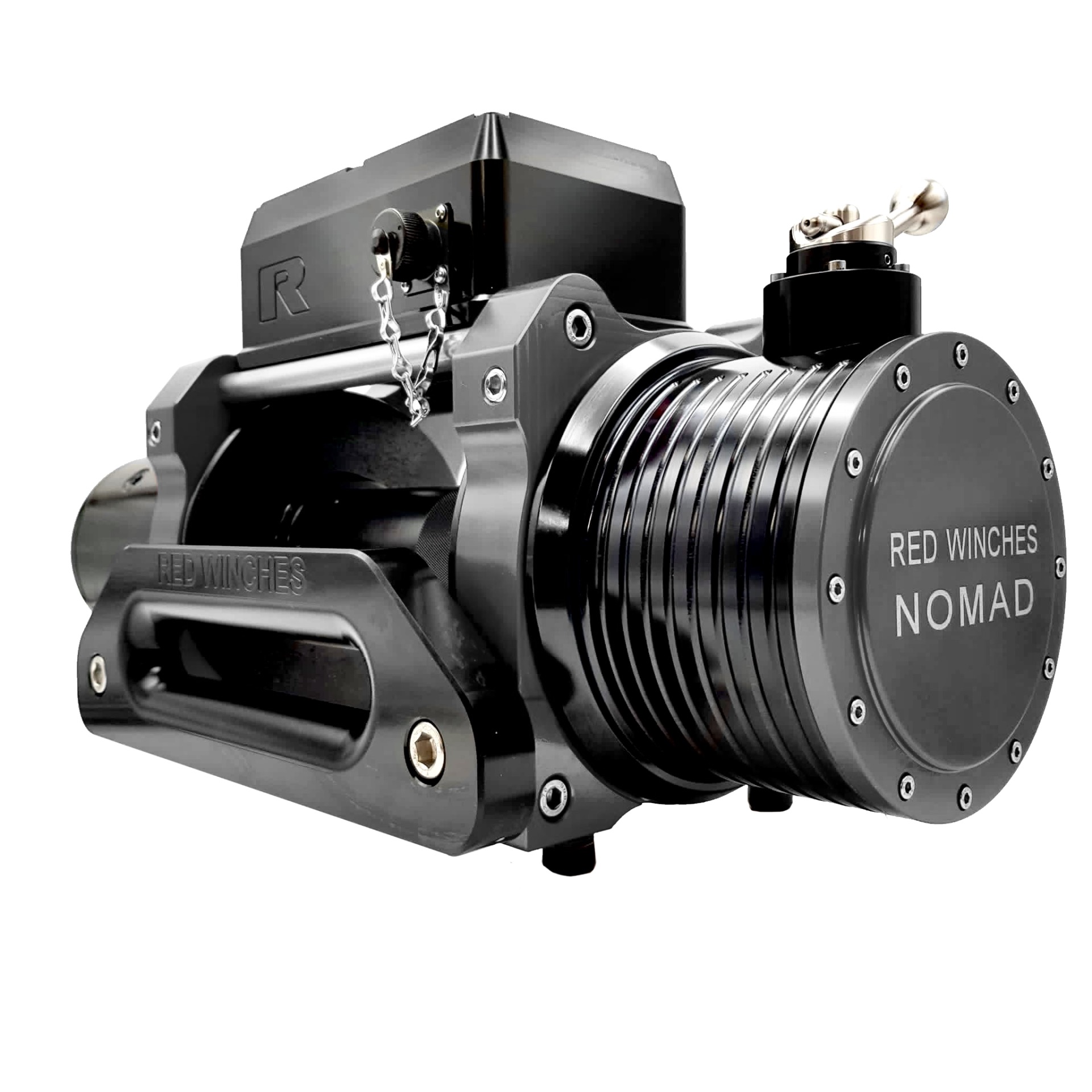

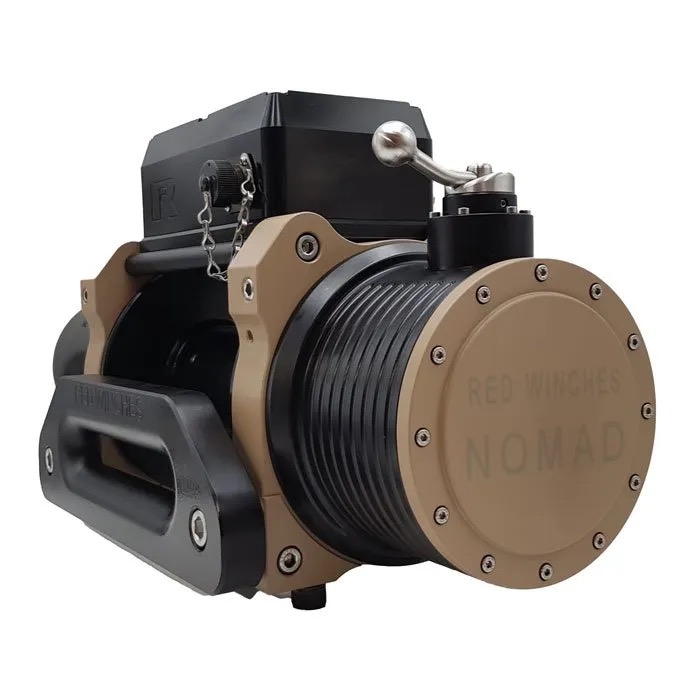

Rope with hook (see Rope & Hook Tab)NOMAD winch
Rope with hook – please see Rope & Hook tab for rope details
Wireless winch control system
Plasma Lock
8.8 grade Mounting bolts and washers x 4
Manual isolator switch
Power cables:
2M x 50mm2 Negative cable with lugs
0.4M x 50mm2 and 1.6M x 50mm2 Positive cables with lugs

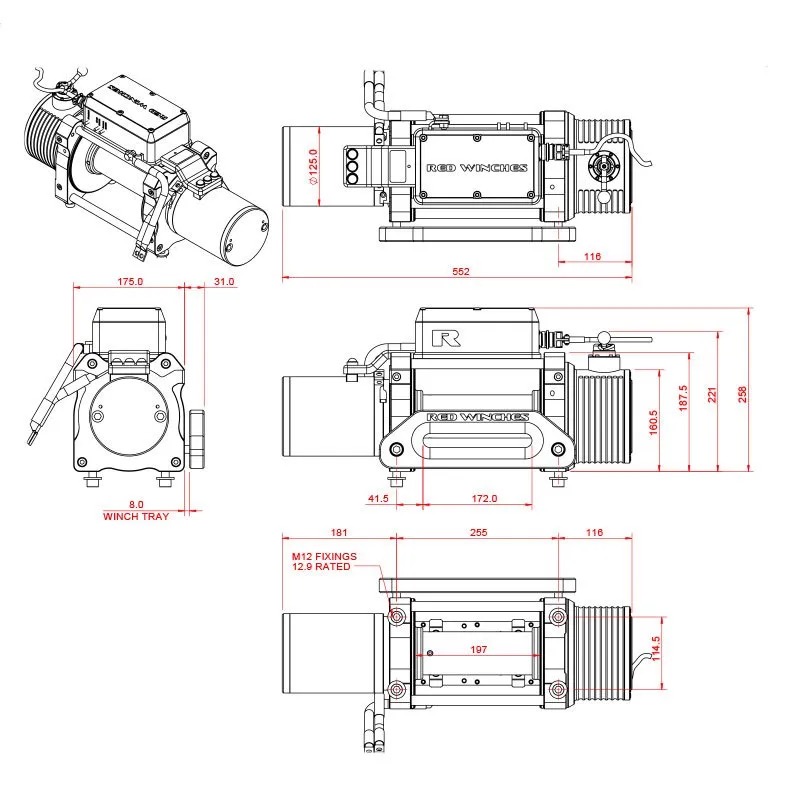

Standard Drum
Drum Capacity & Pulling Power
The winch drum’s capacity to hold various rope sizes allows for flexibility in different operational scenarios. The pulling power of the winch depends heavily on your vehicle’s electrical setup. We recommend the following for optimal performance:
-
A 12V alternator with at least 180A output to charge the winch batteries.
-
Two 75Ah batteries to provide the necessary 12V DC supply.
-
High-quality 50mm² electrical cable (with 70mm² being preferred) for handling high loads.
-
Ensure clean electrical joints, and in areas prone to water exposure, apply conductive grease to protect connections.
Conclusion
The NOMAD winch drum, along with its Plasma Lock system, is built to offer maximum security, durability, and performance. Whether you’re operating in wet conditions or under heavy loads, you can trust the NOMAD to get the job done efficiently and reliably.

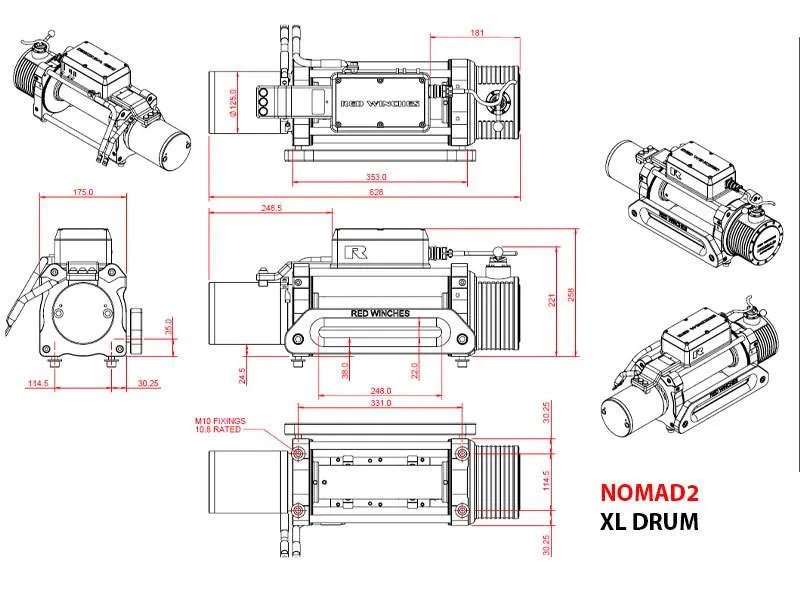

XL Drum
Drum Capacity & Pulling Power
The winch drum’s capacity to hold various rope sizes allows for flexibility in different operational scenarios. The pulling power of the winch depends heavily on your vehicle’s electrical setup. We recommend the following for optimal performance:
-
A 12V alternator with at least 180A output to charge the winch batteries.
-
Two 75Ah batteries to provide the necessary 12V DC supply.
-
High-quality 50mm² electrical cable (with 70mm² being preferred) for handling high loads.
-
Ensure clean electrical joints, and in areas prone to water exposure, apply conductive grease to protect connections.
Conclusion
The NOMAD winch drum, along with its Plasma Lock system, is built to offer maximum security, durability, and performance. Whether you’re operating in wet conditions or under heavy loads, you can trust the NOMAD to get the job done efficiently and reliably.
At least 50mm² high quality, high-load electrical cable, 70mm² is recommended.
Clean electrical joints, and if in areas prone to water, joints should have conductive grease applied.
All our winches are now supplied with Plasma Locks to hold the rope onto the drum, proven and very reliable. They are a simple solution to ensure you always have the minimum amount of line wraps on your winch drum. With the Plasma Lock installed, you can pull your line to your anchor point with confidence that it won’t leave you without any line on the drum and come off in your hand. The Plasma lock has been designed for a variety of line gauges, and you can feel confident that at least 8-10 wraps remain on your drum, reducing the chances of a slippage greatly
ADVENTURE
Pulling Capacity:Â 5,500kg (12,000 lbs)
Average Line Speed: 6 m/min (19.6 ft/min)
Drum RPM – 28
