Description

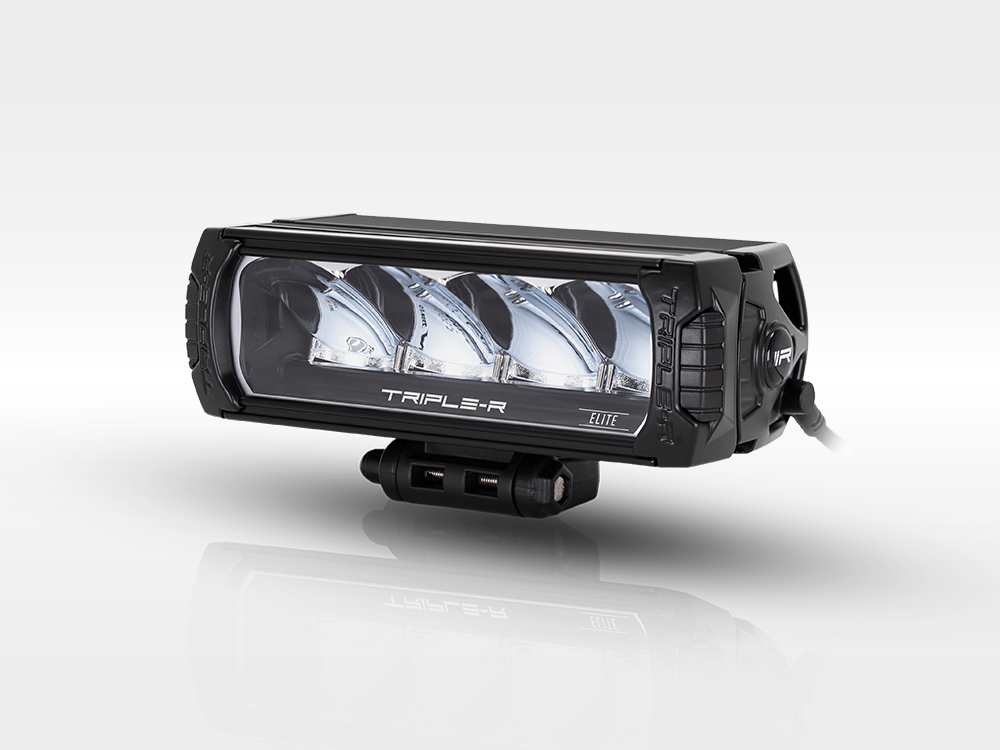

The pinnacle of LED lighting technology, the LR-750 Elite is simply unrivalled in regards lighting performance, styling, and reliability. Through advanced electronics and material design, high intensity LEDs delivering 1 lux to 517m, and a combination of high efficiency LEDs delivering 42 degrees spread lighting, emit over 5000 raw lumens at a natural 5000k color temperature, for a perfectly tuned beam pattern for all types of off and on-road driving. The clean, contemporary design and refined styling elements of the LR Series make this a product to shine day and night.
Measuring 9” in length and weighing just 1.7lbs, the LR-750 Elite has long been adopted at the highest level of professional motorsport, yet superior build quality borne out of our in-house design, engineering, and manufacturing ensures no compromise in the LR-750s reliability or longevity. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.
The LR-750 Elite features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of a ‘Boost Cap’ fixed to the side of the light, allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws. Please click here more information.
WIRING HARNESS KIT SOLD SEPARATELY.

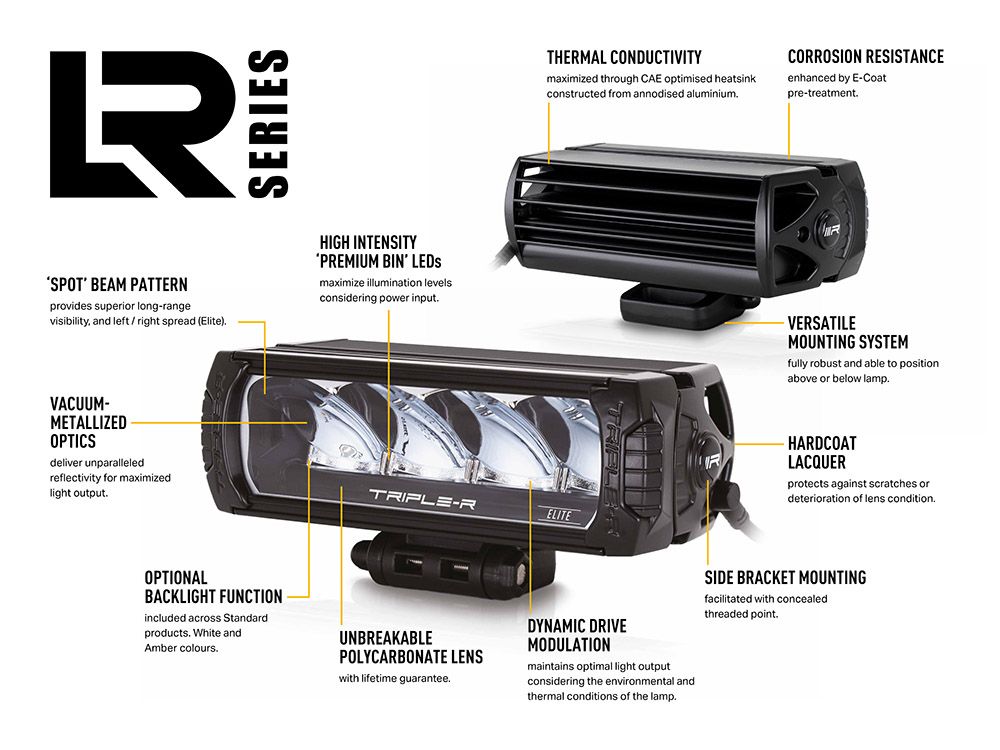

Highly efficient LED technologies
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
CAE optimised heatsink offers improved thermal dynamics
Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ and hardcoated polycarbonate lens
IP68 watertight
5-year warranty
Wiring harness kits available
Designed & manufactured in the UK
| TRIPLE-R 750 Elite |
BOOST MODE |
LOW OUTPUT MODE |
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hrs |
| Weight |
1 kg |
| HIGH BEAM FUNCTION |
| Total Luminous Flux |
5,068 Lm |
1,2678 Lm |
| Total Driver ‘FOV’ Flux † |
3,3340 Lm |
835 Lm |
| Colour Temperature |
5000K |
5000K |
| Power Consumption |
45 Watts |
11.5 Watts |
| Current Draw (14.4V) |
3.1 Amps |
0.8 Amps |
| Peak Current Draw |
5.14 Amps |
0.88 Amps |
| Connector |
2-Pin Superseal (+25cm Cable) |
| CERTIFICATION |
| IP Rating # |
IP68 |
| High Beam |
DOT / SAE J581 (in Low Output Mode only) |
| Salt Spray Test |
ISO 9227 |
| Dump Load Protection |
ISO 7637-2 |
|
†Â – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.
# – All Triple-R Lights’ products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
|
