Description

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing color temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and Low output Mode (white only). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the E-mark mode.

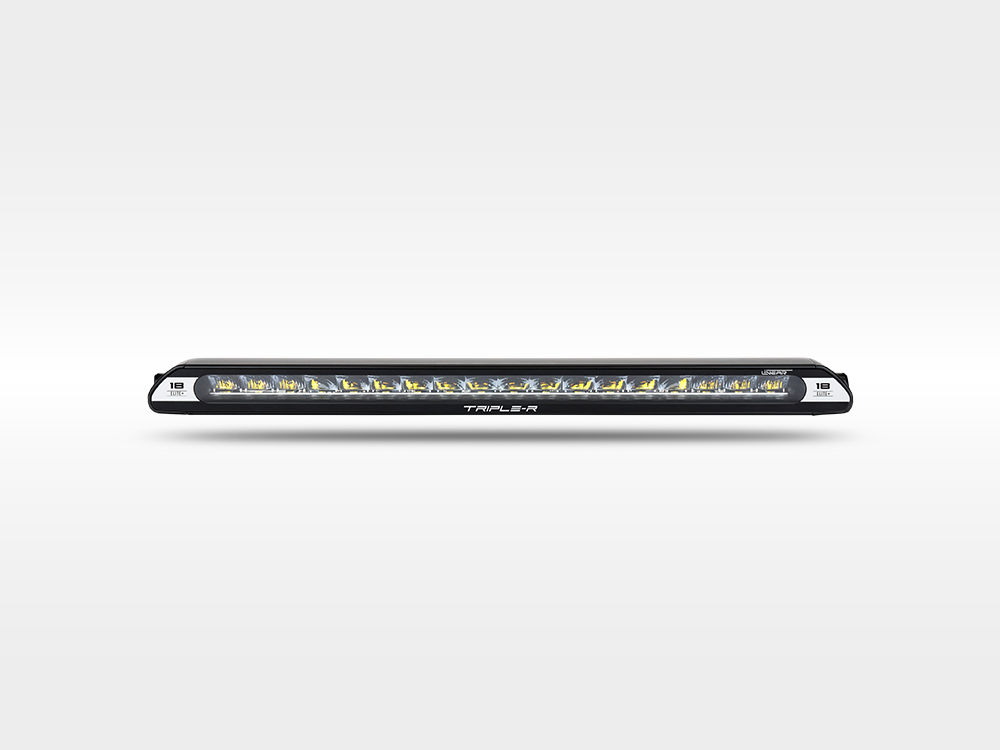

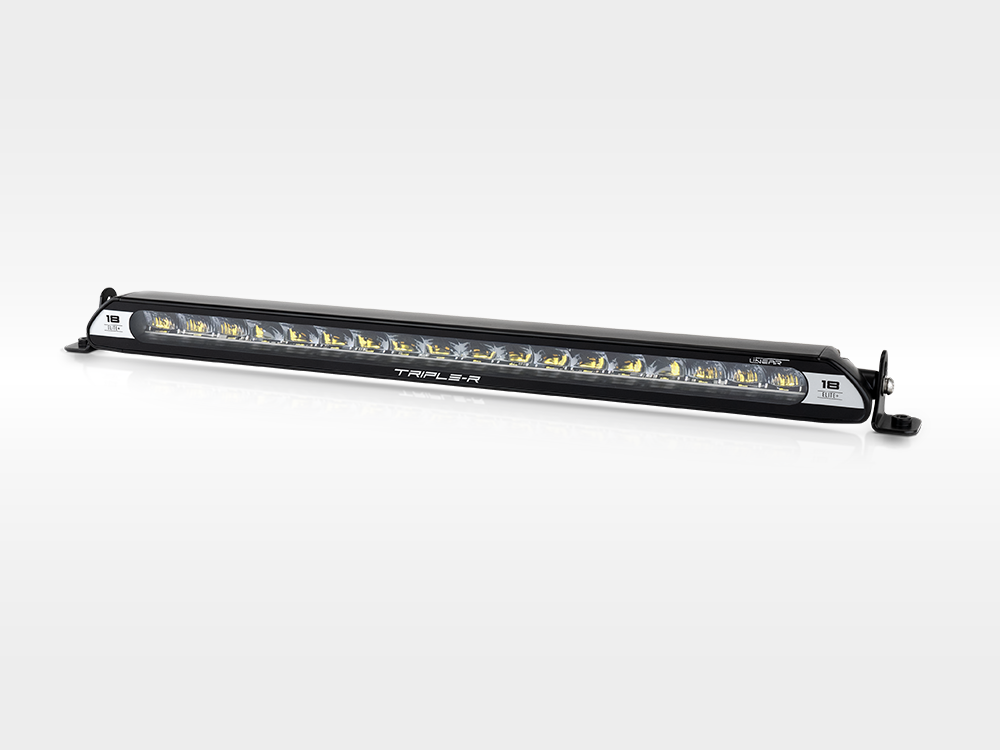

Despite the low-profile aero design of the Linear-18 Elite+, through advanced electronic design the light consists of an impressive 36 white LEDs and 18 yellow LEDs. With the light operating in Boost mode the white LEDs produce 14,850 raw lumen (10% more than the current Linear-18 Elite). Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 21,000 raw lumen representing incredible lighting performance for an LED light bar of its size. All LEDs operating in combination results in 190W power consumption and 14Amps current draw (at 14V). To support operation of the lamp and electrical installation, a supplied wiring kit with high power Aptiv connector is included.

Like all Triple-R Lights’ products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.

NOT FOR HIGHWAY USE.

Combination of highly efficient white (5000k) and PC-yellow LEDs.

Yellow LEDs optimised for use in snow / fog / dust conditions.

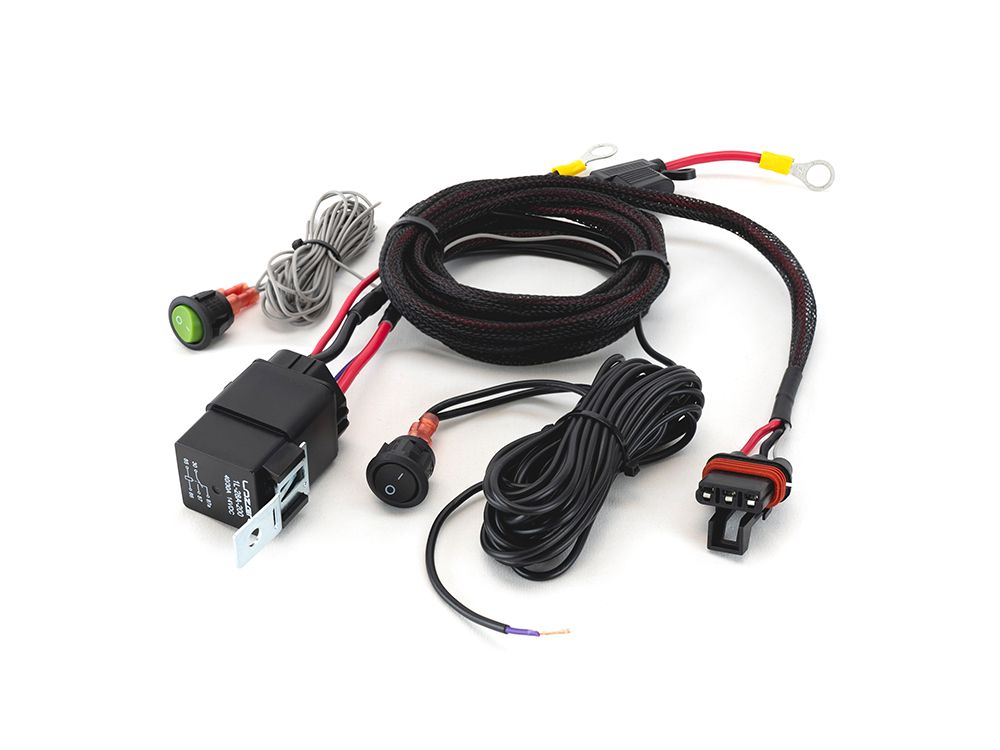

Supplied with One-Lamp Wiring Kit.

Momentary switch facilitates switching lighting modes.

Memory function recalls preferred lighting mode without needing to re-select each journey.

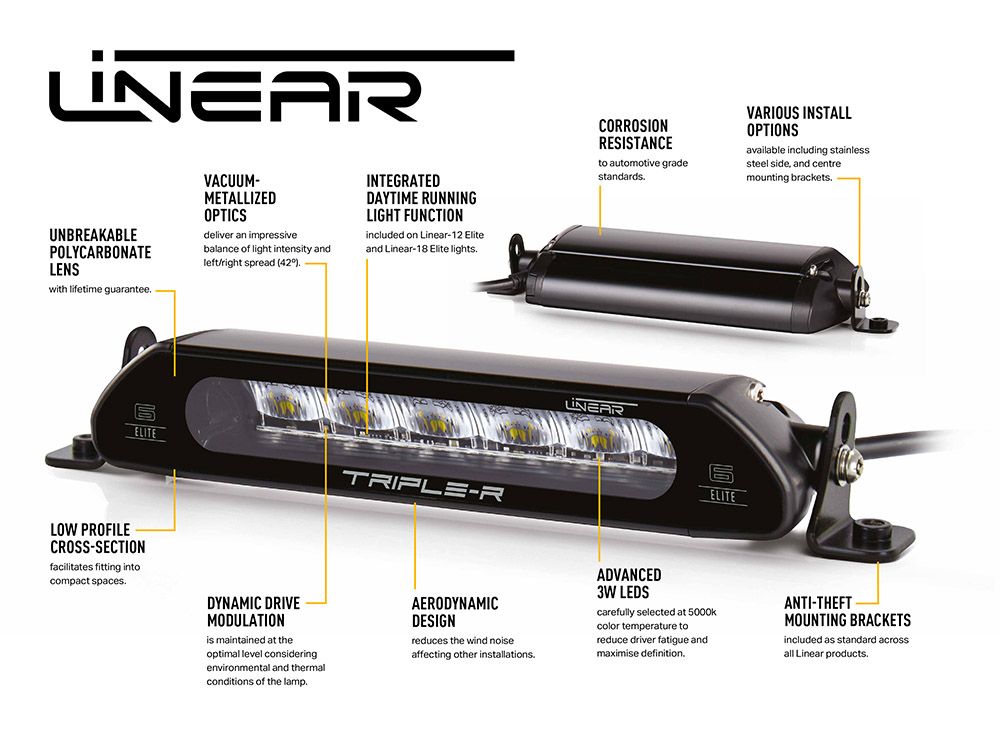

Sleek, low profile design facilitates installation

Flexible mounting options – anti-theft mounting brackets included

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management system optimises light output to preserve longevity of the LEDs.

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight

5-year warranty

Designed & manufactured in the UK

LINEAR-18 ELITE+	BOOST MODE	LOW OUTPUT MODE	FOG/DUST/SNOW MODE	COMBO MODE
Voltage Range (DC)	10-32V
LED Life	50,000 hrs
Weight	2.4 lbs
HIGH BEAM FUNCTION
Total Luminous Flux	14,850 Lm	4,455 Lm	6,150 Lm	21,000 Lm
Total Driver ‘FOV’ Flux †	10,573 Lm	3,172 Lm	3,737 Lm	14,284 Lm
Colour Temperature	White LED’s (5000K)	White LED’s (5000K)	Yellow LED’s	White & Yellow LED’s
Power Consumption	134 Watts	39 Watts	56 Watts	190 Watts
Current Draw (14.4V)	9.9 Amps	2.7 Amps	4.1 Amps	14.1 Amps
Peak Current Draw	13.3 Amps	3.8 Amps	6.1 Amps	19 Amps
Connector	3-Pin Aptiv (+25cm Cable)
CERTIFICATION
IP Rating #	IP68
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here. # – All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
