INEOS QUARTERMASTER BROWN DAVIS 28 GAL AUXILIARY LONG RANGE FUEL TANK-Petrol

In Stock

INEOS QUARTERMASTER BROWN DAVIS 28 GAL AUXILIARY LONG RANGE FUEL TANK-Petrol

$2,695.00

Categories: , , , Tags: , , Brand:

We are in the final stages of finalizing our eCommerce solution. Pricing and online ordering will be available before September 1. If you want to place an order please give us a call at (361) 254-1427

Description

FILLER POINT: TWIN FILLER – STANDARD LOCATION WITH TUB – SEPERATE FILLER NECK SUPPLIED FOR TRAY

FUEL SUPPLY METHOD: TRANSFER PUMP TO MAIN FUEL TANK

TANK LOCATION: BEHIND REAR AXLE

MODIFICATIONS: NEW EXHAUST SYSTEM SUPPLIED WITH KI

  • 51.8 GAL TOTAL FUEL CAPACITY \

    NO MORE JERRY CANS -3 YEAR WARRANTY – US WIDE SHIPPING WITH UPS

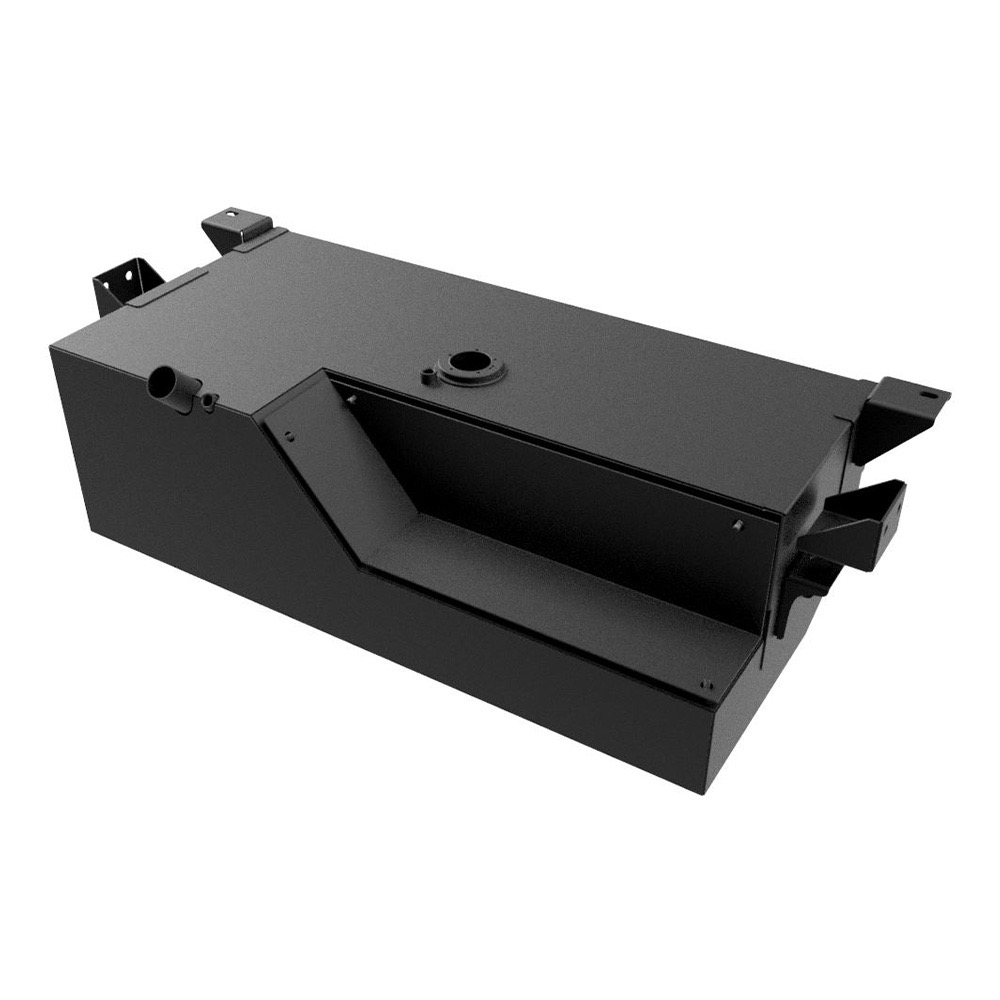

    The Brown Davis 28 Gallon Auxiliary Long Range Fuel Tank for the INEOS Quartermaster is the ultimate upgrade for over-landing builds. With a standard main tank of 23.8 gallons, the addition of a Brown Davis auxiliary fuel tank almost doubles your total fuel supply to an impressive 51.8 gallons, transforming the Quartermaster’s over-landing ability and allowing you to travel further between fuel stops, making it ideal for long-distance road trips, towing, or exploring remote regions where fuel availability is scarce. This system utilises a transfer fuel pump to deliver fuel from the Brown Davis Auxiliary tank to the vehicle’s main tank, which is activated via a dash mounted fuel gauge pump button. Seamlessly integrated into the vehicle without compromising ground clearance or off-road capability, this auxiliary tank gives your INEOS Quartermaster the range it deserves while retaining the rugged reliability it has been designed for. With Brown Davis, you can finally match your Quartermaster’s capability with the fuel endurance needed to go anywhere.

    PART NUMBER: IG23A2

    TANK TYPE: AUXILIARY

    CAPACITY: 28 GALLON

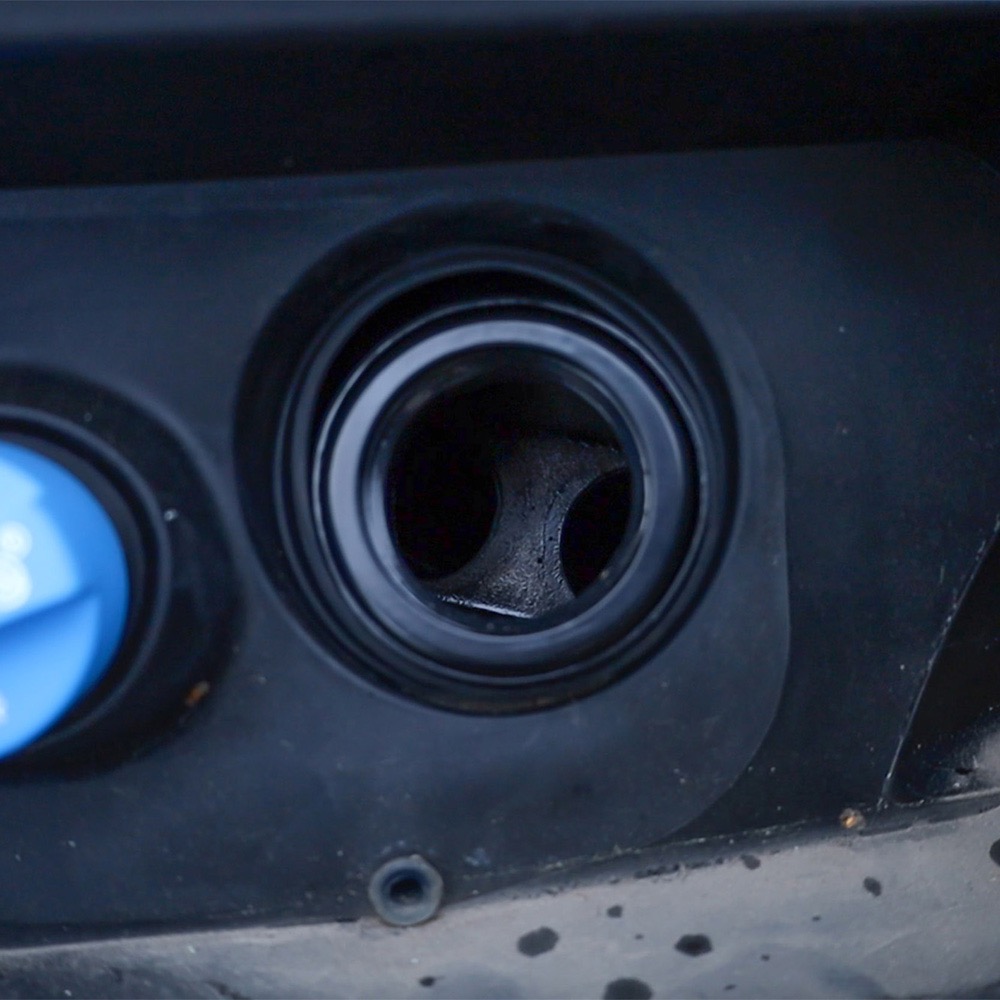

    FILLER POINT: TWIN FILLER – STANDARD LOCATION FOR TUB – SEPERATE FILLER NECK SUPPLIED FOR TRAY

    FUEL SUPPLY METHOD: TRANSFER PUMP TO MAIN FUEL TANK

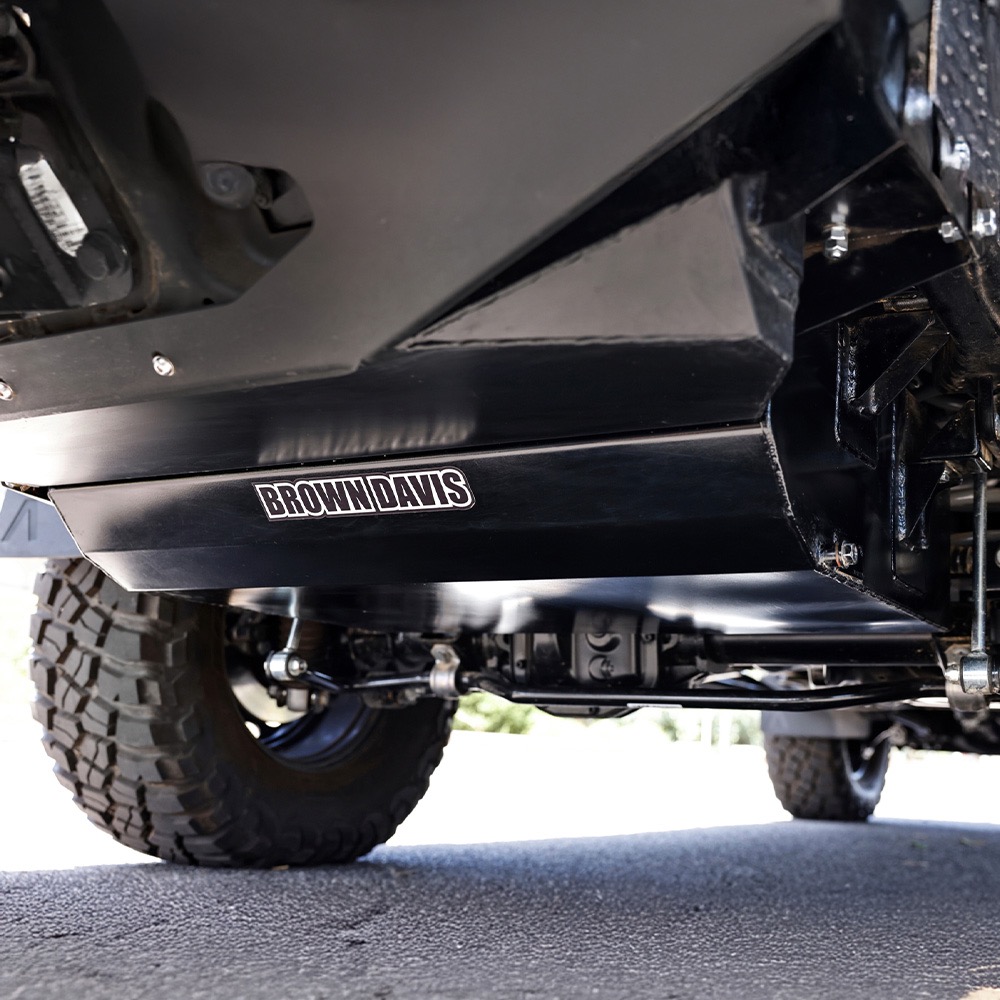

    TANK LOCATION: BEHIND REAR AXLE

    FITTING TIME: APPROX 6 hour/s

    MODIFICATIONS: NEW EXHAUST SYSTEM SUPPLIED WITH KIT

    FUEL TRANSFER SYSTEM

    This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can course pump failure. All parts and hardware for install are supplied

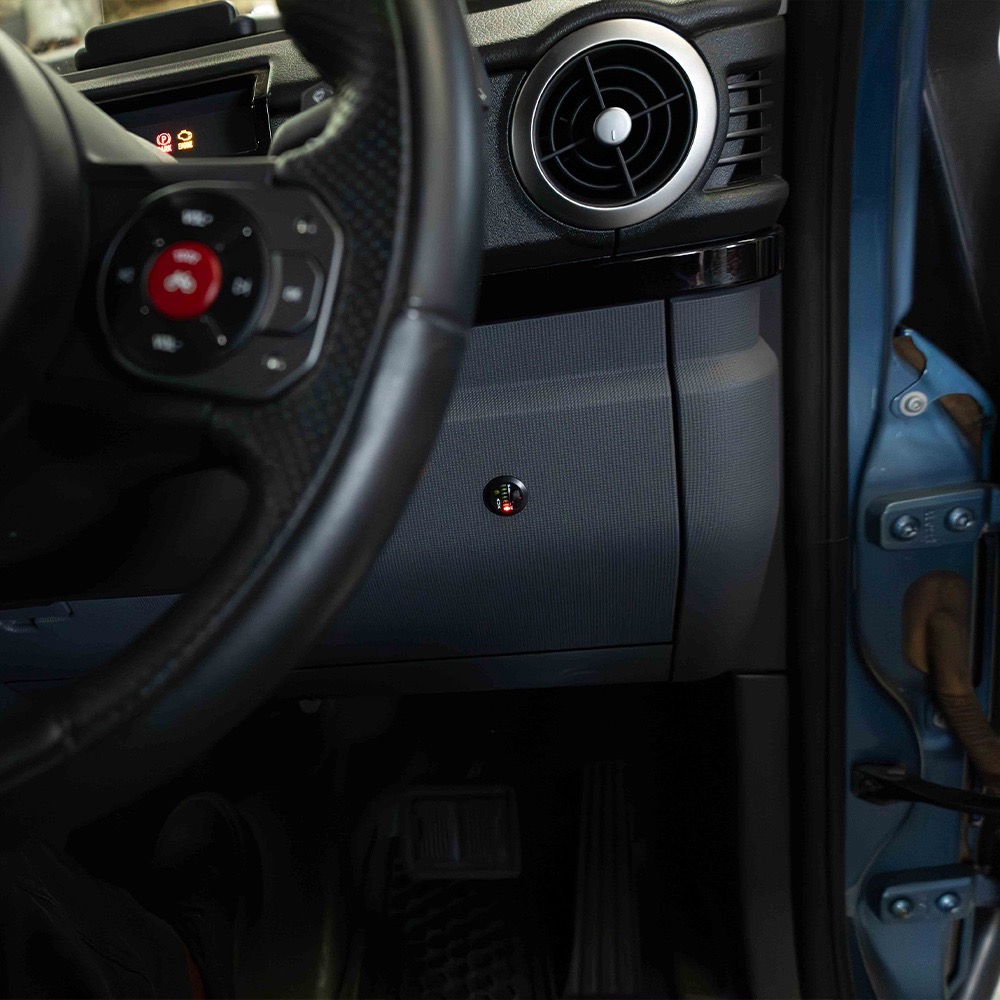

    Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.
