Ineos Grenadier Grille Mount Kit

Description

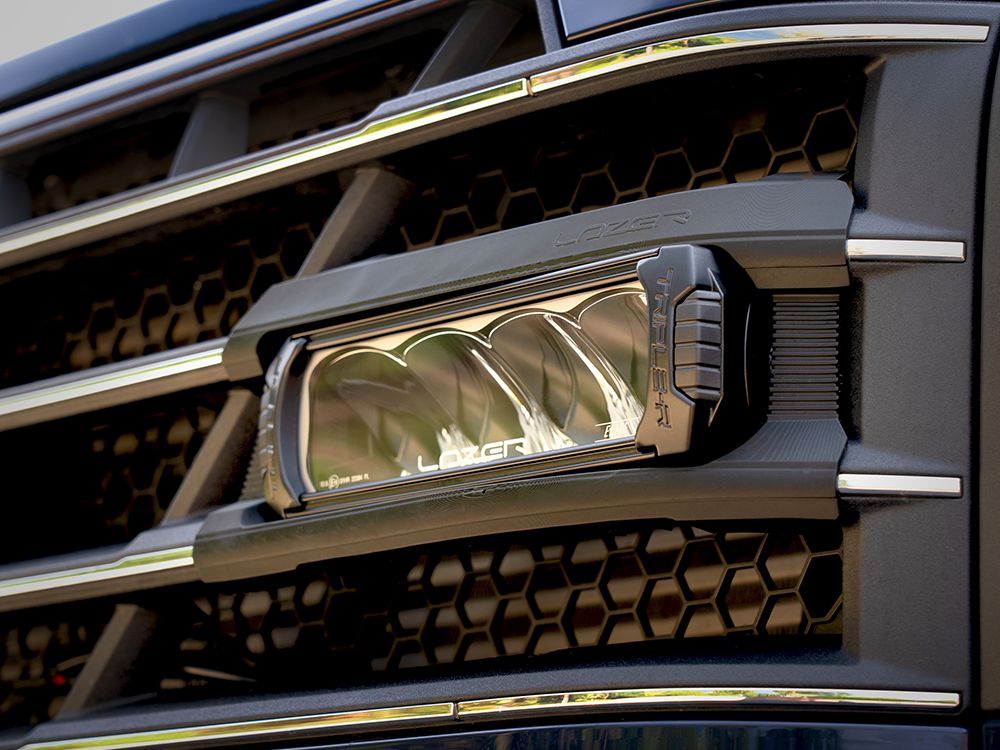

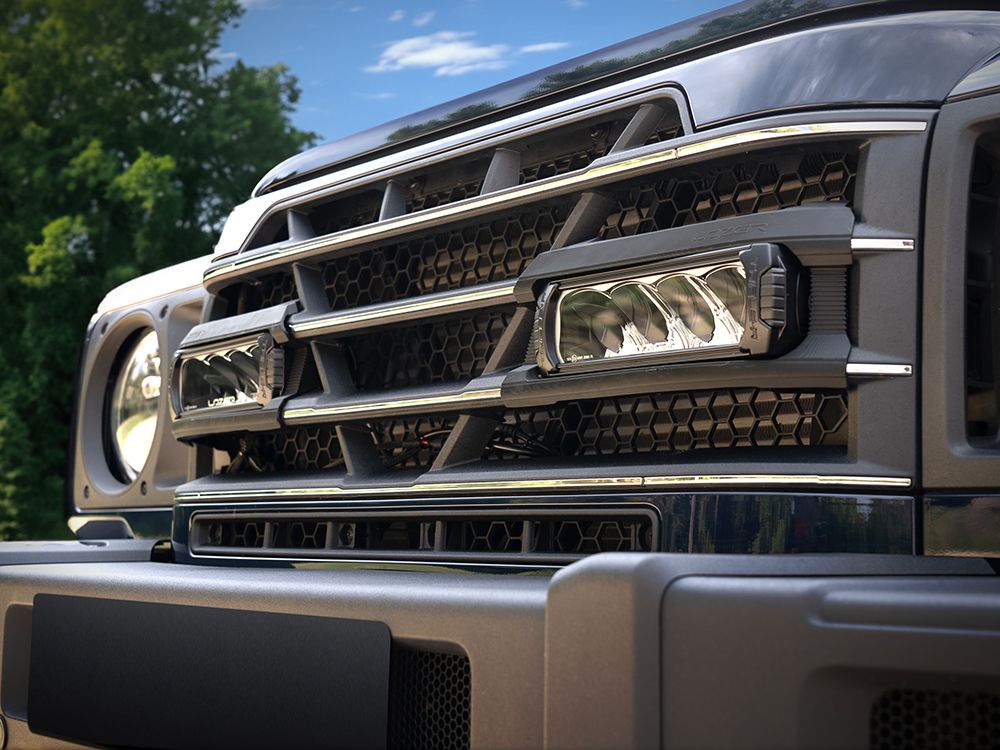

For an OE quality, auxiliary spotlight installation, the Triple-R Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Triple-R Lights’ High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

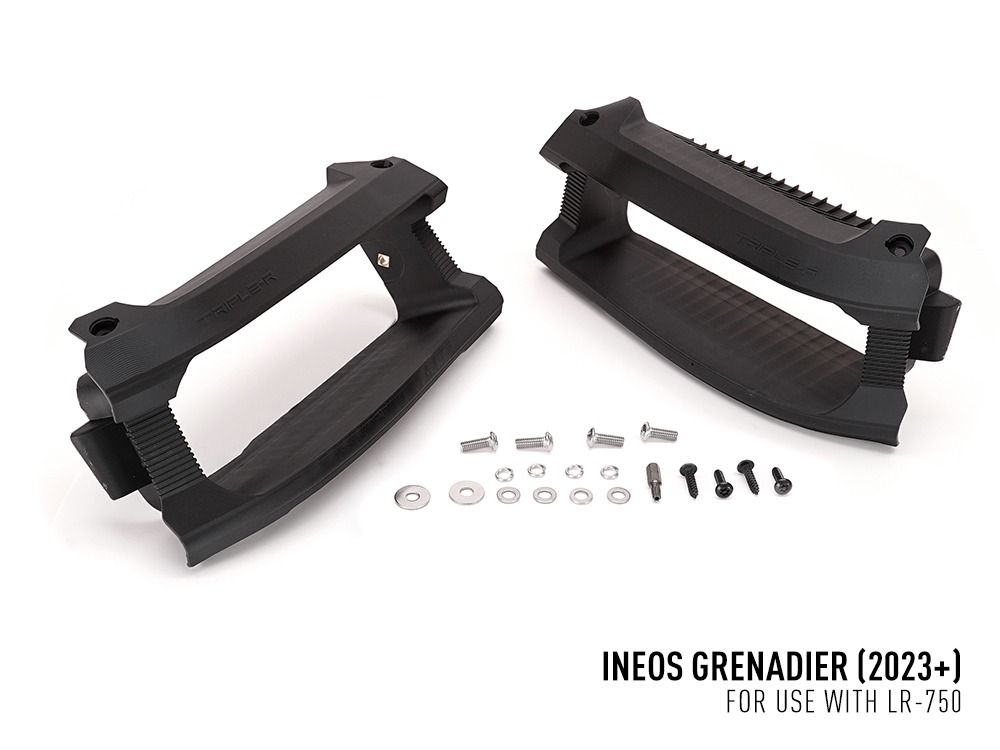

The Ineos Grenadier Grille Integration Kit, includes a pair of LR-750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.

The Ineos Grenadier Grille Integration Kit is carefully engineered and optimised for use with LR-750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

Please note: Lens covers are not compatible with lights installed using the INEOS Grille Kit.

NOT FOR HIGHWAY USE

Bespoke vehicle integration kit for Triple-R Lights LED light installation

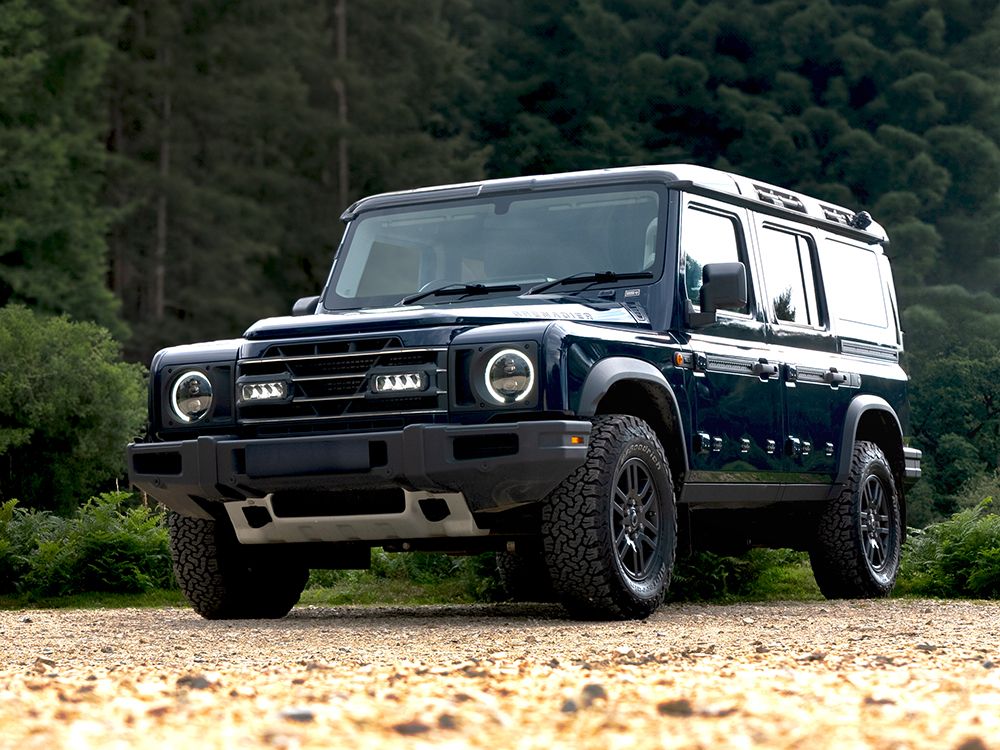

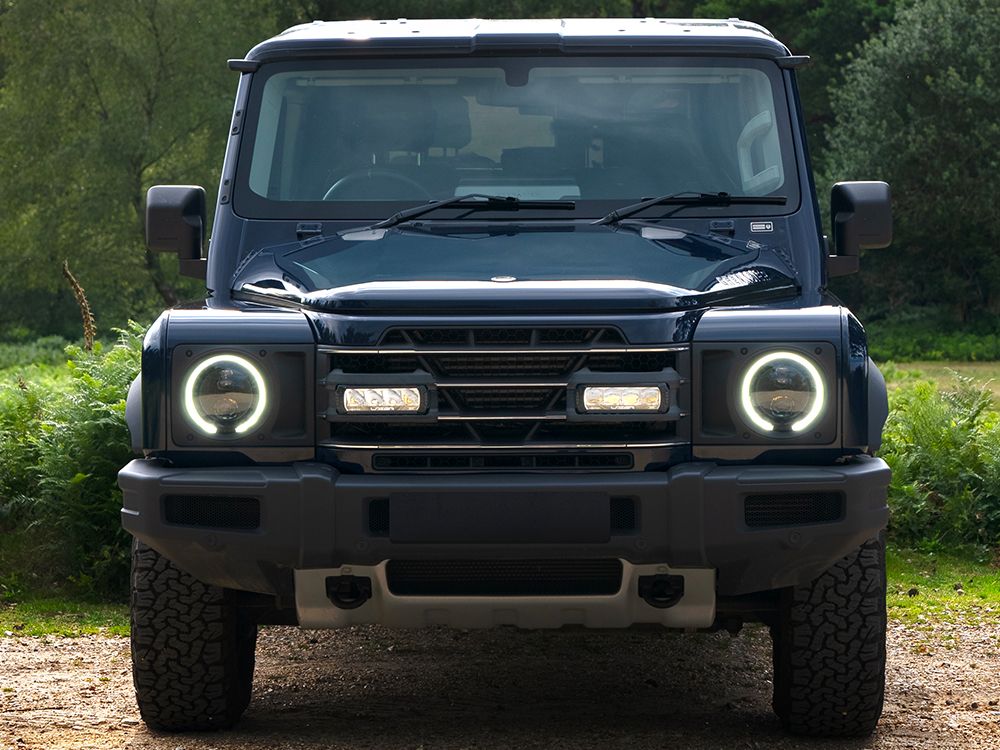

Custom fit for Ineos Grenadier

Available with: LR-750 High Performance LED lights

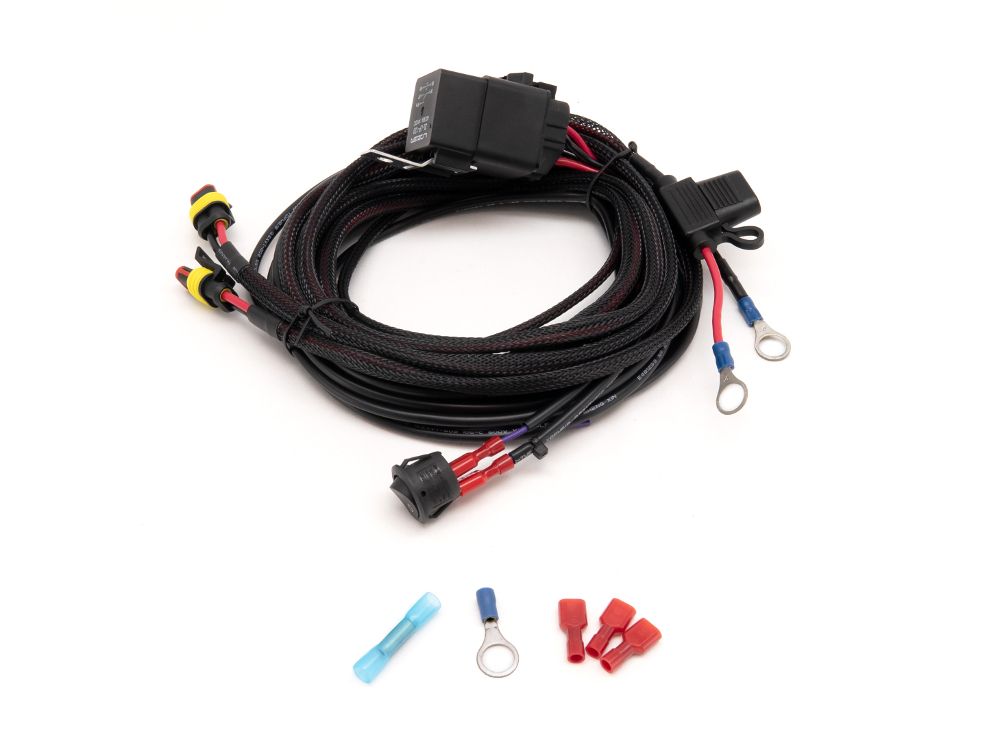

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in Britain

	2x LR-750	2x LR-750 BEACON (BOOST MODE)	2x LR-750 ELITE (BOOST MODE)

Voltage Range (DC)	10-32V	10-32V	10-32V
LED Life	50,000 hours	50,000 hours	50,000 hours
Weight	5.7 lbs	5.7 lbs	5.7 lbs

HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm	10800 Lm	10136 Lm
Total Driver ‘FOV’ Flux †	5572 Lm	2484 Lm	6680 Lm
Colour Temperature	5000K	5000K	5000K
Power Consumption	88 Watts	104 Watts	104 Watts
Current Draw (14.4V)	6.2 Amps	7.4 Amps	7.2 Amps
Connector	3-Pin Superseal (+25cm Cable)	6-Pin Superseal (+25cm Cable)	2-Pin Superseal (+25cm Cable)

CERTIFICATION
IP Rating #	IP68	IP68	IP68
Salt Spray Test	ISO 9227	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2	ISO 7637-2

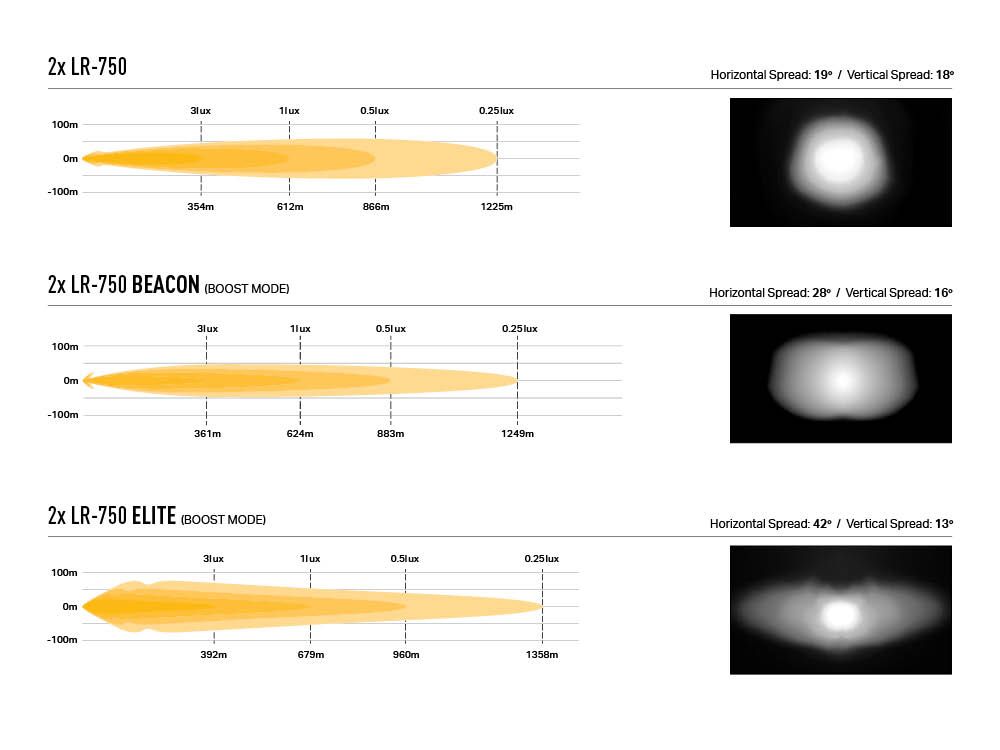

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	19° / 18°	28° / 16°	42° / 13°
0.25 Lux	1225m	1249m	1358m
0.5 Lux	866m	883m	960m
1 Lux	612m	624m	679m
3 Lux	354m	361m	392m

† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# – All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
