DROP SLIDE-DS95

$1,075.00

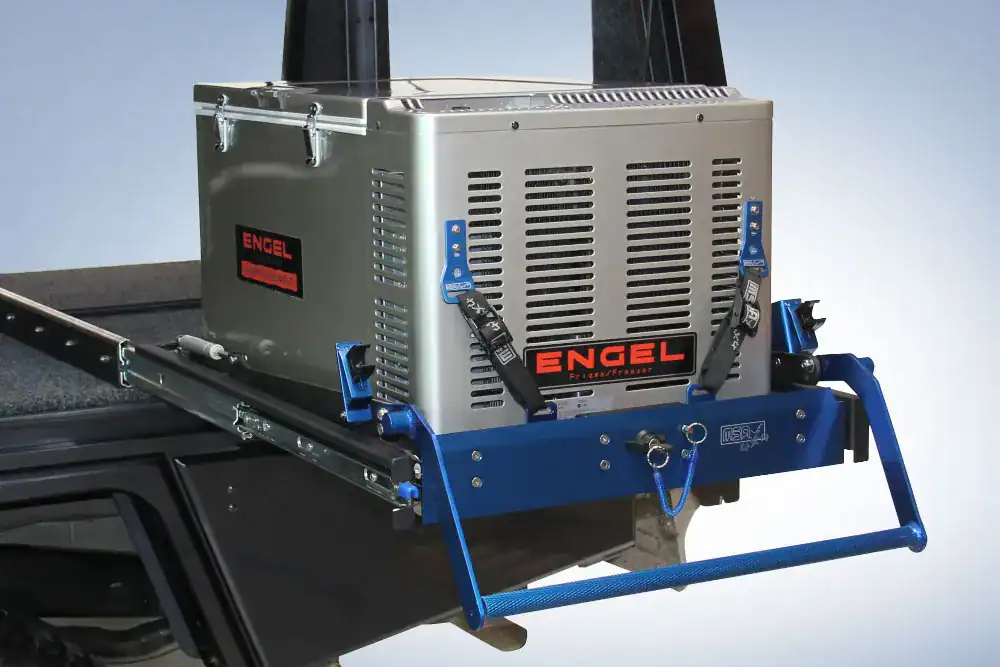

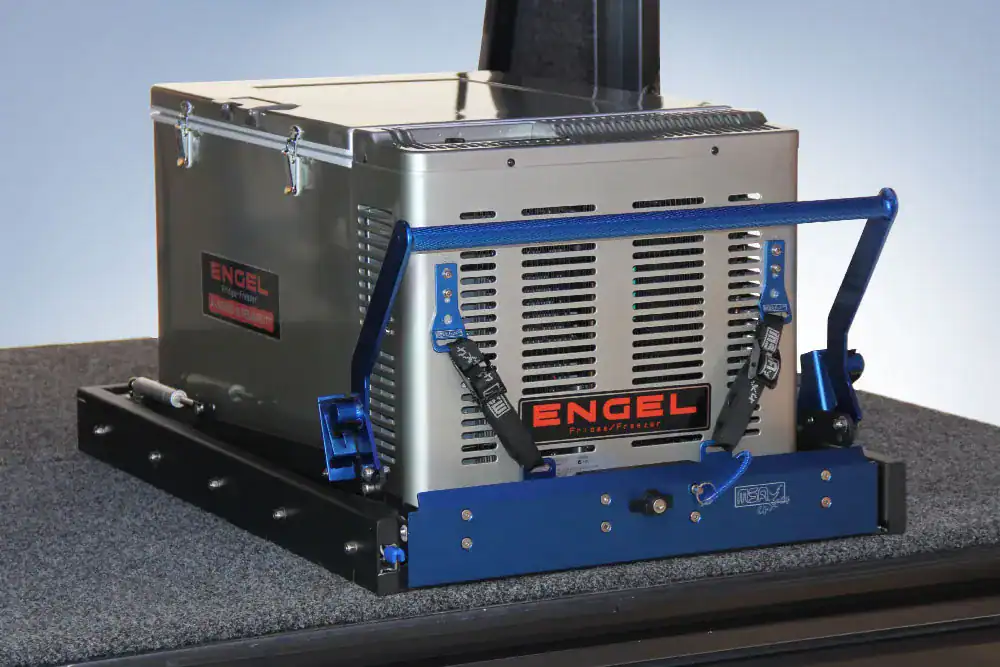

The patented DROP SLIDE-DS95 is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

Using the slimline handle, the DROP SLIDE-DS95 lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle. The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The DROP SLIDE-DS95 is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Out of stock

SKU: MSDS95 Categories: , Tags: , , Brand:

We are in the final stages of finalizing our eCommerce solution. Pricing and online ordering will be available before September 1. If you want to place an order please give us a call at (361) 254-1427

Description

Key Features:

  • Compact size
  • Easy install
  • Lock-in and lock-out safety system
  • Stainless steel and blue anodised aluminium fittings
  • Powder-coated steel frame construction
  • Travel lock and key
  • Anodised blue faceplate

Note:

5 sizes available to suit a variety of applications, click here to view size compatibility chart.  MSA 4X4 Fridge Barriers available for all models.

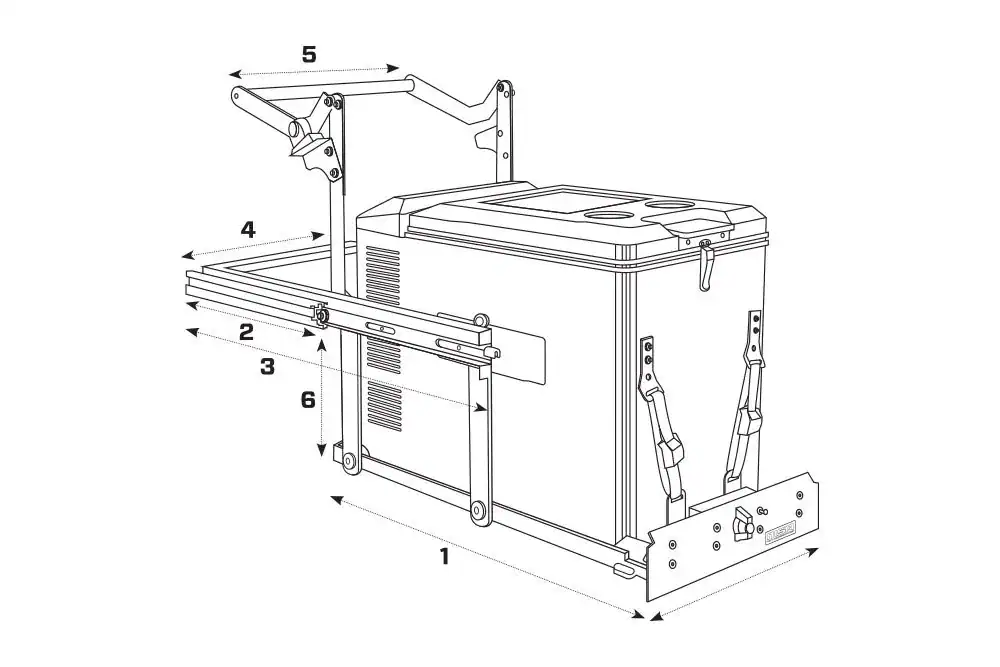

Weight 110.2lbs / 50kg
Freight Dimensions 1140×770×210
Fridge Tray1 955×560
Slide Length Closed2 1020+20
Slide Length Open3 2170+20
Overall Width4 670+20
Handle Width5 610
Drop6 300
Mount to Base 35
Max Set Back 150
Gas Strut 1000 N slow
(all measurements displayed are in mm)

Additional information

Weight 116 lbs
Dimensions 45 × 30 × 10 in
