Description

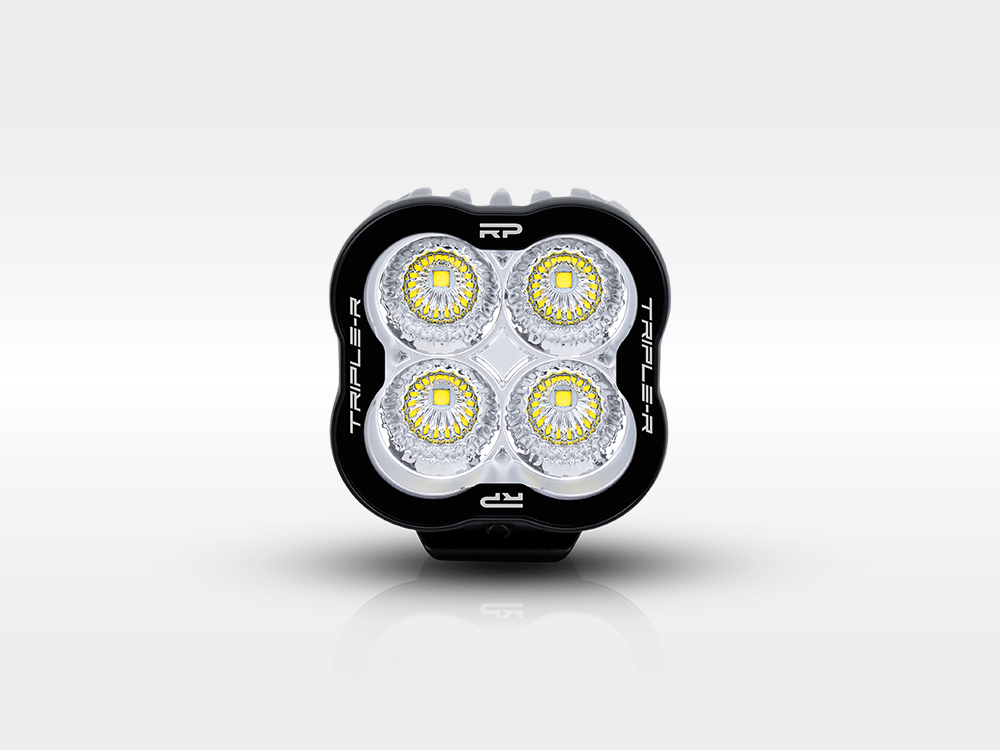

The RP Flood is an ‘off-road’ LED light built for performance and durability. Featuring 4x premium-bin 20W LEDs, the lamp produces 8,940 raw lumens which combine with the ultra-reflective, vacuum-metallised optics specially designed and engineered to deliver light over an impressive area with 60 degrees of left and right spread of light, alongside the same up/down spread. A single lamp still delivers usable light to 192m (0.25 lux), and with 1 lux delivered to just under 100m.
To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Triple-R’ branded lens cover is included with each light.
Like all Triple-R Lights products the RP Flood has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.
PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY
NOT FOR HIGHWAY USE

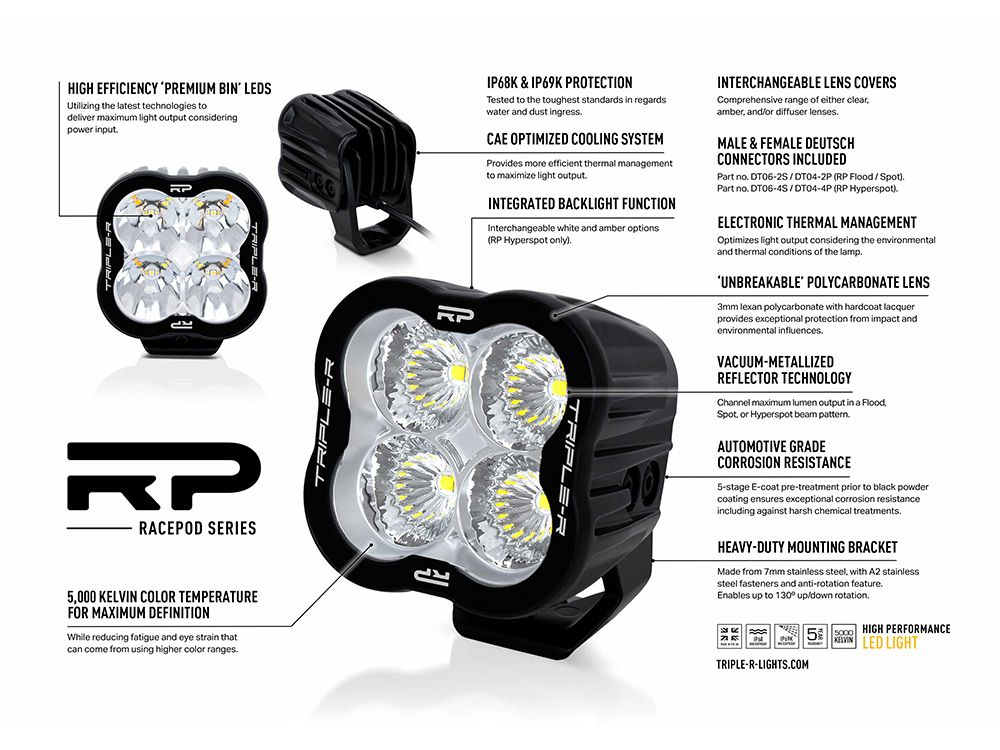

Utilizing 4 high-density 20W LEDs
Vacuum-metallized optics deliver flood beam pattern
Marine grade Aluminium lamp body
A2 Stainless Steel fasteners, delta-sealed for maximum corrosion protection.
CAE optimized cooling system with Electronic Thermal Management
5000k color temperature
Comprehensive range of lens covers available
Die-cast, heavy-duty mounting bracket
‘Unbreakable’ polycarbonate lens with hardcoat
Automotive grade corrosion resistance
IP68 / IP69k approved
Over voltage protected
Reverse polarity protected
Includes male/female (2-pin) Deutsch connectors
5year warranty
Made in the UK
| RP Flood |
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hrs |
| Weight |
2.4 Ibs |
| HIGH BEAM FUNCTION |
| Total Luminous Flux |
8940 Lm |
| Total Driver ‘FOV’ Flux † |
7420 Lm |
| Colour Temperature |
5000k |
| Power Consumption |
80 Watts |
| Current Draw (14.4V) |
5.6 Amps |
| Connector |
2-Pin Deutsch DT (+20cm Cable) |
| CERTIFICATION |
| IP Rating # |
IP68 |
| Salt Spray Test |
ISO 9227 |
| Dump Load Protection |
ISO 7637-2 |
|
†Â – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.
# – All Triple-R Lights’ products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
|
